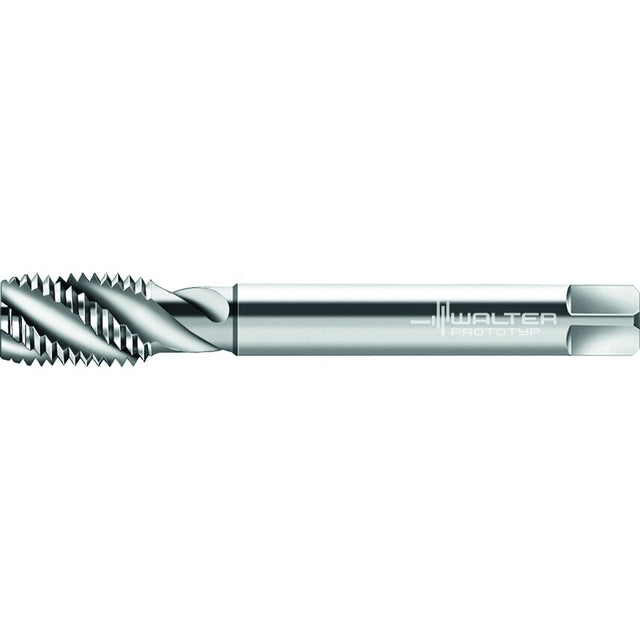

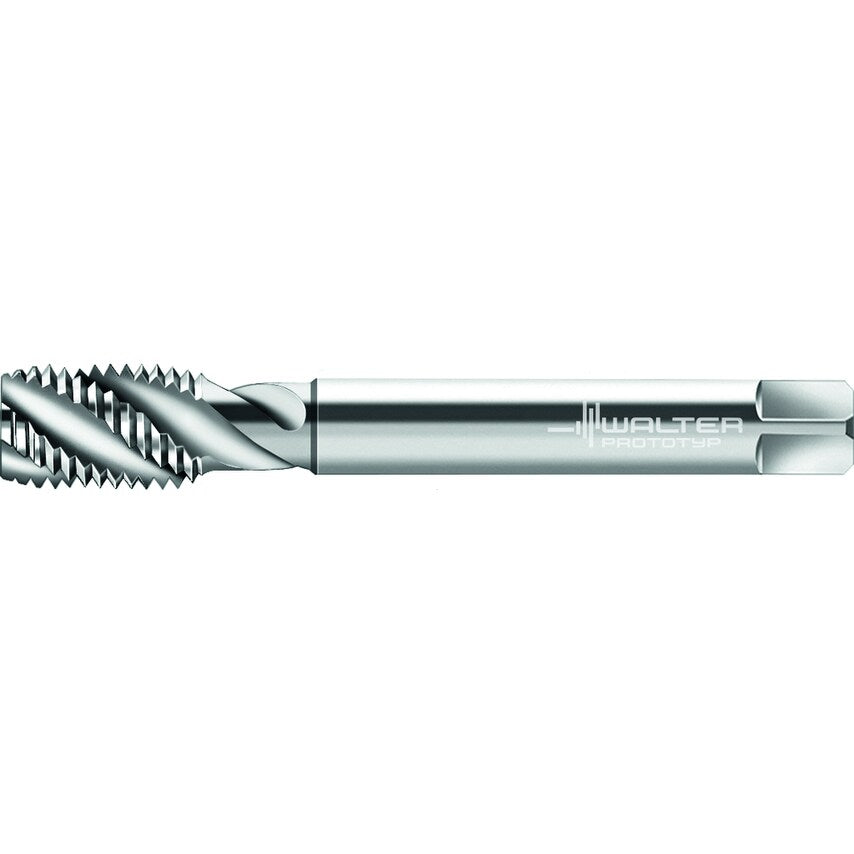

HSS-E machine taps Paradur Xpert P C = 2-3xTP (semi-bottom chamfer) 3xD UNC/2B DIN 2184-1 right hand flute 45 Suitable for blind hole UNC 5/8-11 P=11
| Finish/Coating | Uncoated |
| Usable Length | 68mm |
| Teeth per Inch | 11 |
| Cutting Edge Length | 20mm |
| ISO Category | O |
| Tap Type | Spiral Flute |
| Thread Size | 5/8in |
| Material | HSSE |
| Connection Diameter | 12mm |
| ISO Designation | P22569-UNC5/8 |
| Series | Paradur\u00ae X\u00b7pert P |
| MFR Part No. | 6244713 |
| Driving Square Length | 12mm |
| Functional Length | 110mm |
| Clamping Width | 9mm |
| Dimensions Standard | DIN 2184-1 |
| Tool Designation | P22569-UNC5/8 |
| Thread Standard | UNC |
| Number of Grooves | 4 |
