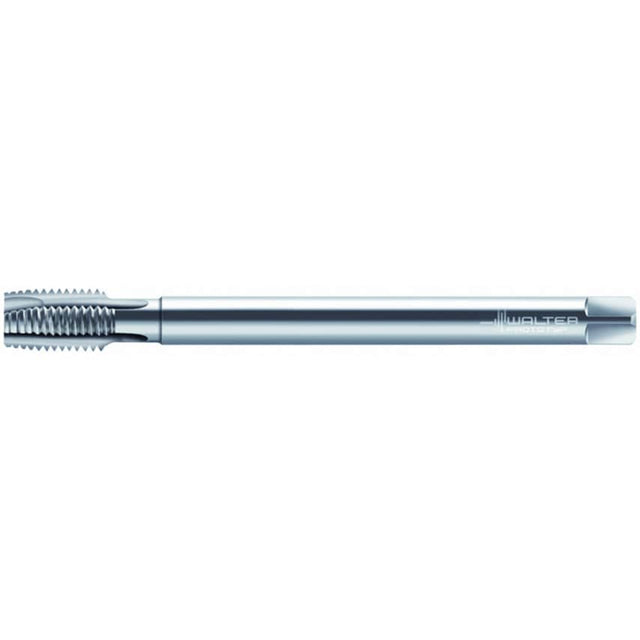

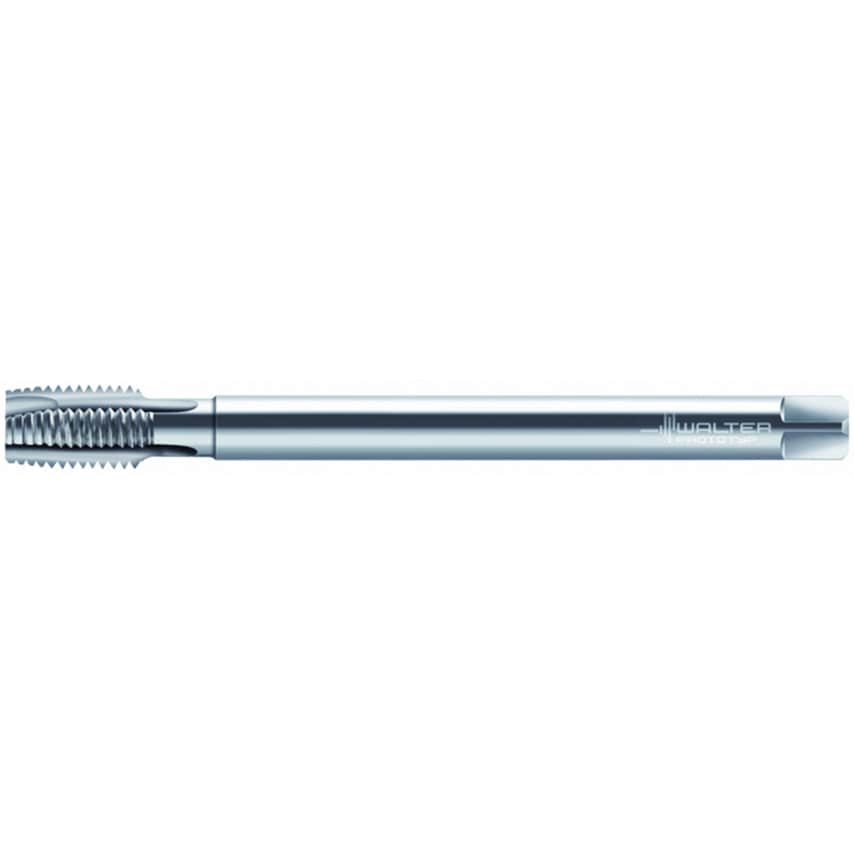

HSS-E machine taps Prototex Xpert P B = 3.5-5xTP (plug chamfer) 3xD M/6H ~DIN 376 L Suitable for through hole M 10 P=0.0591in
| MFR Part No. | 6220238 |
| Clamping Width | 5.5mm |
| Thread Size | M 10 |
| Tap Type | Machine Tap |
| Overall Length | 200mm |
| Number of Grooves | 3 |
| Driving Square Length | 8mm |
| Usable Length | 177mm |
| Cutting Edge Length | 20mm |
| Tool Designation | P202603-M10 |
| Thread Pitch | 1.5mm |
| Shank Diameter | 7mm |
| Material | HSSE |
