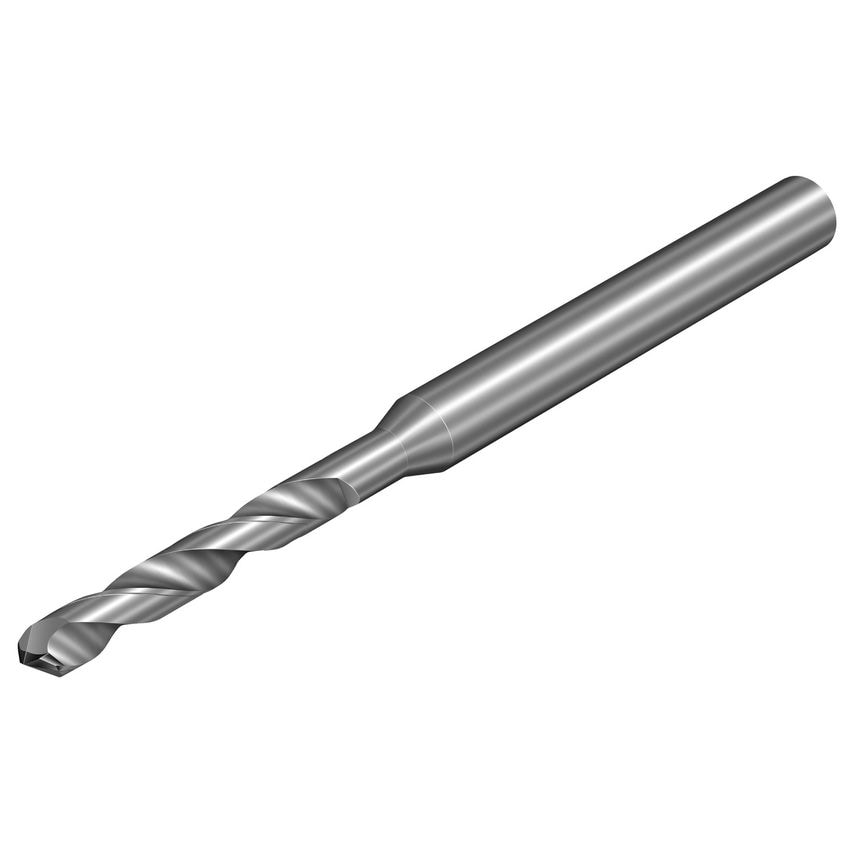

Product Range: CoroDrill 862Tool Type: Solid carbide drillsSolid carbide and polycrystalline diamond (PCD) micro drills ideal for precision machining in small parts- Drill for micro holes < 3 mm diameter- Good hole entry and exit, tight hole tolerance- ACM (Advanced Chip Management) flute geometry for small and manageable chips
| MFR Part No. | 8078630 |
| Rotational Speed Maximum | 30000 1/min |
| ISO Cutting Tool Material | PCD |
| Connection Diameter | 3mm |
| Coolant Entry Style | Without Coolant |
| Achievable Hole Tolerance | H7 |
| CoroPak | 21.2 |
| Point Angle | 118\u00b0 |
| Usable Length | 33.6mm |
| Overall Length | 62.5mm |
| Coating Process Type | Uncoated |
| Coating Type | Uncoated |
| Cutting Diameter | 2.8mm |
| Functional Length | 61.659mm |
| Weight | 4.4g |
| Grade | X1DU |
| Unit Measured | Metric |
| Through Hole Function Property | Yes |
| Usable Length Diameter Ratio | 12 |
