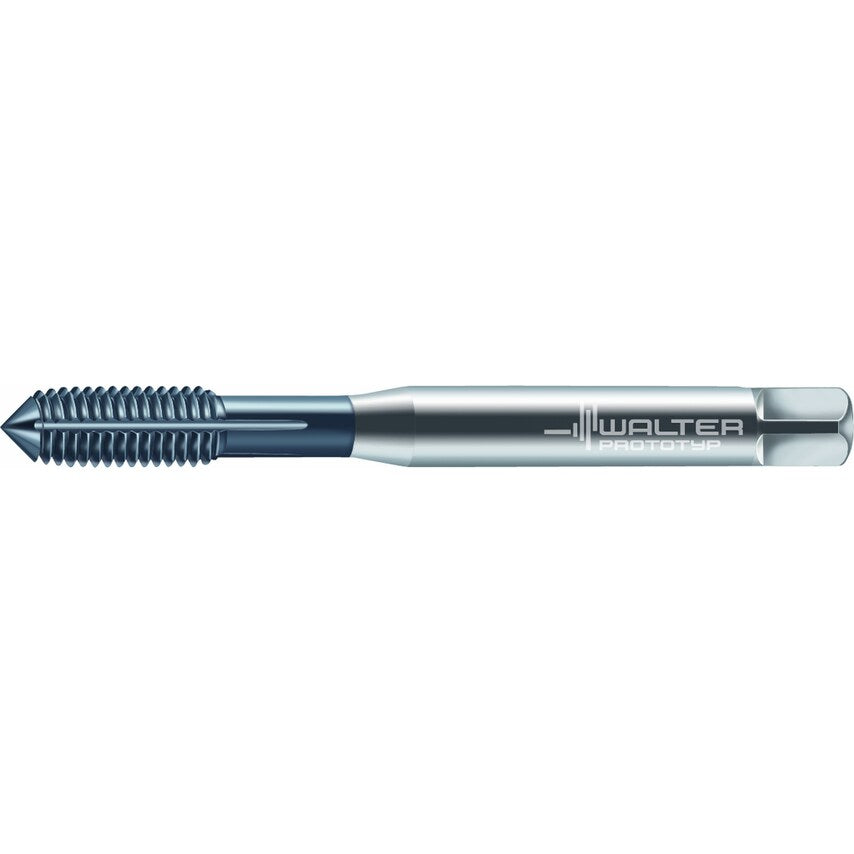

HSS-E machine thread formers Protodyn SF C = 2-3xTP (semi-bottom chamfer) 3,5xD M/6HX DIN 2174 Suitable for blind hole TICN Suitable for through hole M 6 P=0.0394in
| Driving Square Length | 8mm |
| Functional Length | 80mm |
| Clamping Width | 4.9mm |
| Number of Grooves | 5 |
| Cutting Edge Length | 15mm |
| Thread Standard | Metric |
| MFR Part No. | 5201816 |
| Connection Diameter | 6mm |
| Finish/Coating | TiCN |
| Tap Type | Machine Tap |
| Material | HSSE |
| ISO Category | M | N | P | S |
| Pitch | 0.8mm |
| Thread Size | M6 |
| Thread Pitch | 1mm |
| Usable Length | 30mm |
| Tool Designation | D7061706-M6 |
| Series | Protodyn\u00ae SF |
| ISO Designation | D7061706-M5 |
| Dimensions Standard | DIN 2174 |
