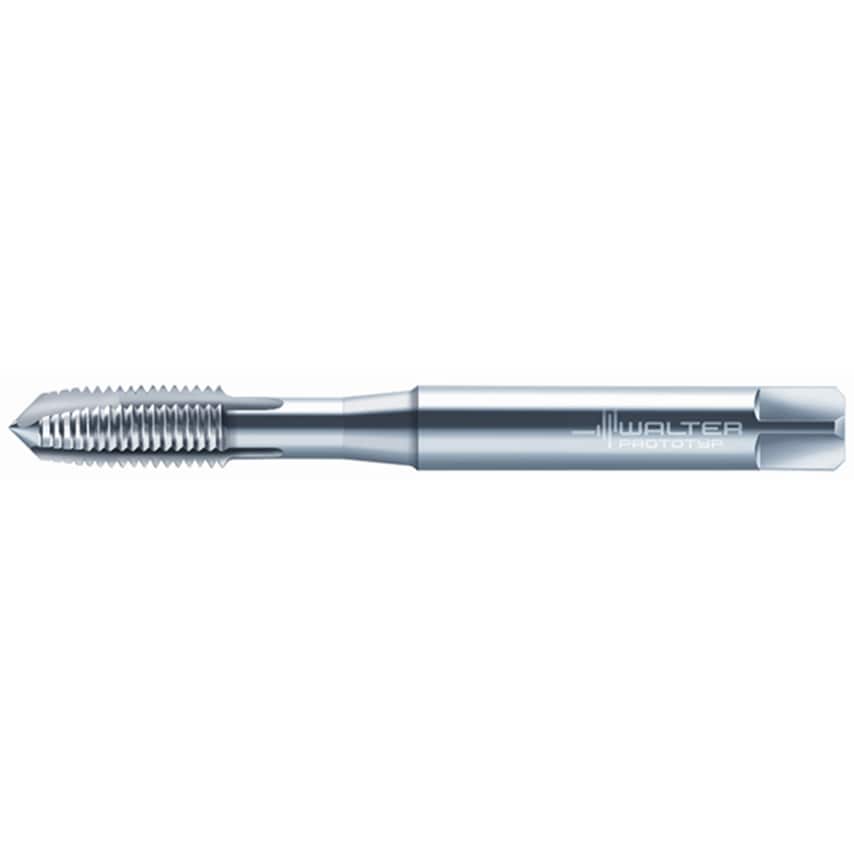

HSS-E machine taps Prototex Xpert P B = 3.5-5xTP (plug chamfer) 3xD UNC/2B DIN 2184-1 Suitable for through hole UNC 1/4-20 P=20
| Material | HSSE |
| Teeth per Inch | 20 |
| Series | Prototex\u00ae X\u00b7pert P |
| MFR Part No. | 6149430 |
| Number of Grooves | 3 |
| Overall Length | 80mm |
| ISO Category | O |
| Dimensions Standard | DIN 2184-1 |
| ISO Designation | P22310-UNC1/4 |
| Driving Square Length | 8mm |
| Tool Designation | P22310-UNC1/4 |
| Cutting Edge Length | 15mm |
| Tap Type | Spiral Point |
| Shank Diameter | 7mm |
| Usable Length | 30mm |
| Finish/Coating | Uncoated |
| Thread Size | 1/4in |
| Clamping Width | 5.5mm |
| Thread Standard | UNC |
