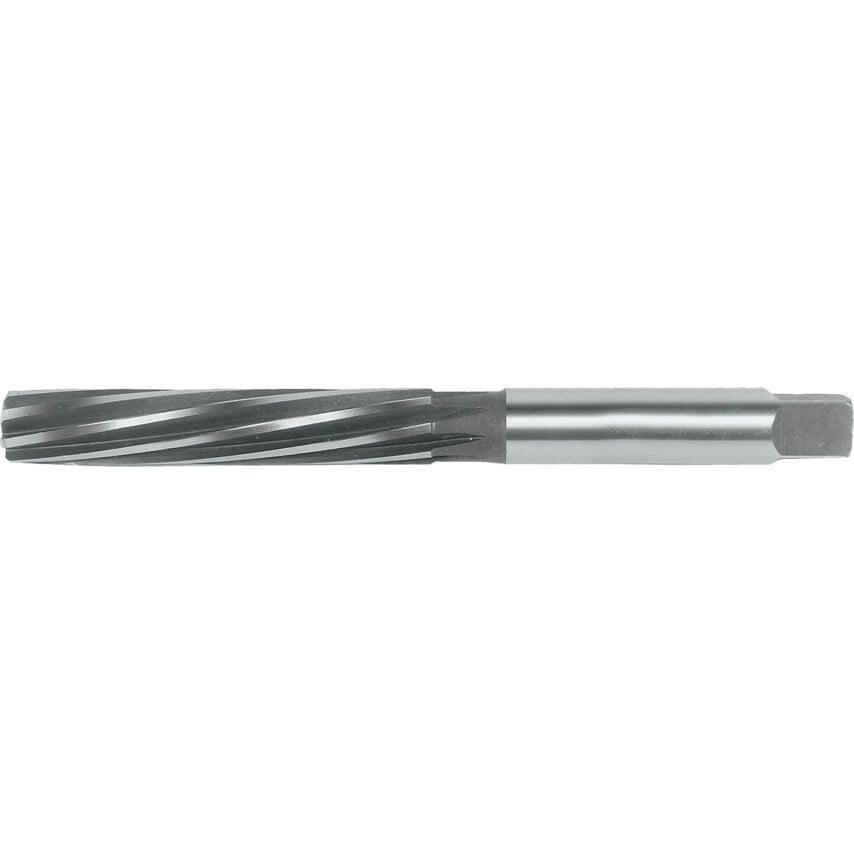

Used to produce a close tolerance surface finish by hand in almost any environment i.e. on site or in a workshop. The HSS straight shank parallel hand reamers are manufactured from hardy high speed steel for effective durability and cutting performance.
Feratures and Benefits
HSS construction for increased durability and prolonged tool lifespan
Produces a close tolerance surface finish
Notes
Manufactured to BS 328 : Part 4 : 1990 and DIN 206B.
Right handed cutting direction
Diameter: ~ up to 3.00. Tolerance: +0.008, -0.007.
Diameter: Over 3.00 ~ up to 6.00. Tolerance: +0.010, -0.005.
Diameter: Over 6.00 ~ up to 10.00. Tolerance: +0.012, -0.006.
Diameter: Over 10.00 ~ up to 18.00. Tolerance: +0.015, -0.008.
Diameter: Over 18.00 ~ up to 30.00. Tolerance: +0.017, -0.009.
Diameter: Over 30.00 ~ up to 50.00. Tolerance: +0.021, -0.012.
| Shank Type | Straight |
| Flute Type | Left Hand Spiral |
| Reamer Type | Fixed |
| Diameter Tolerance | +0.017 to -0.009 |
| Overall Length | 215mm |
| Standards Met | BS 328-4 | DIN 206B |
| Flute Length | 107mm |
| Cutting Direction | Right Hand |
| Reamer Diameter | 23mm |
| Number of Flutes | 8 |
| Material | HSS |
