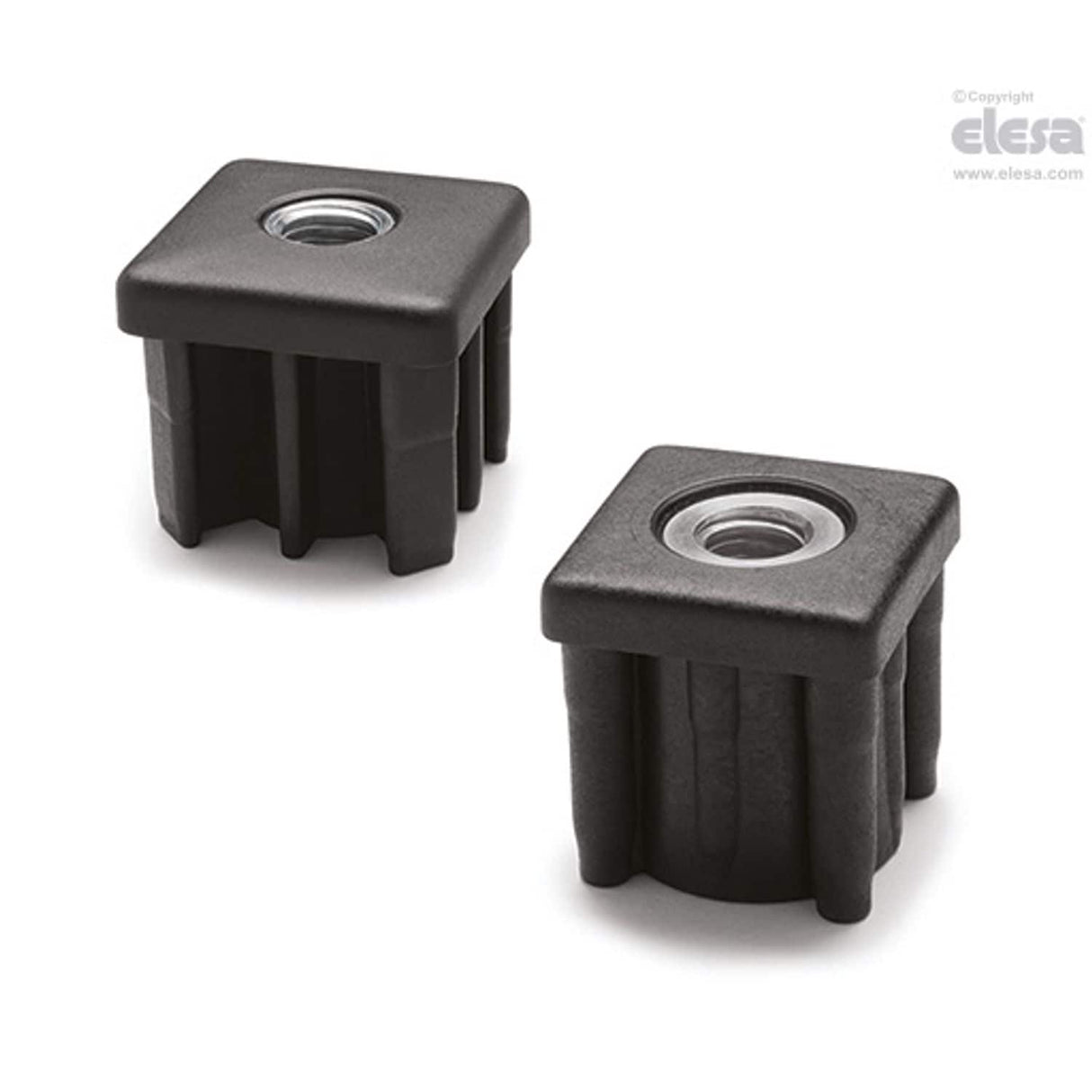

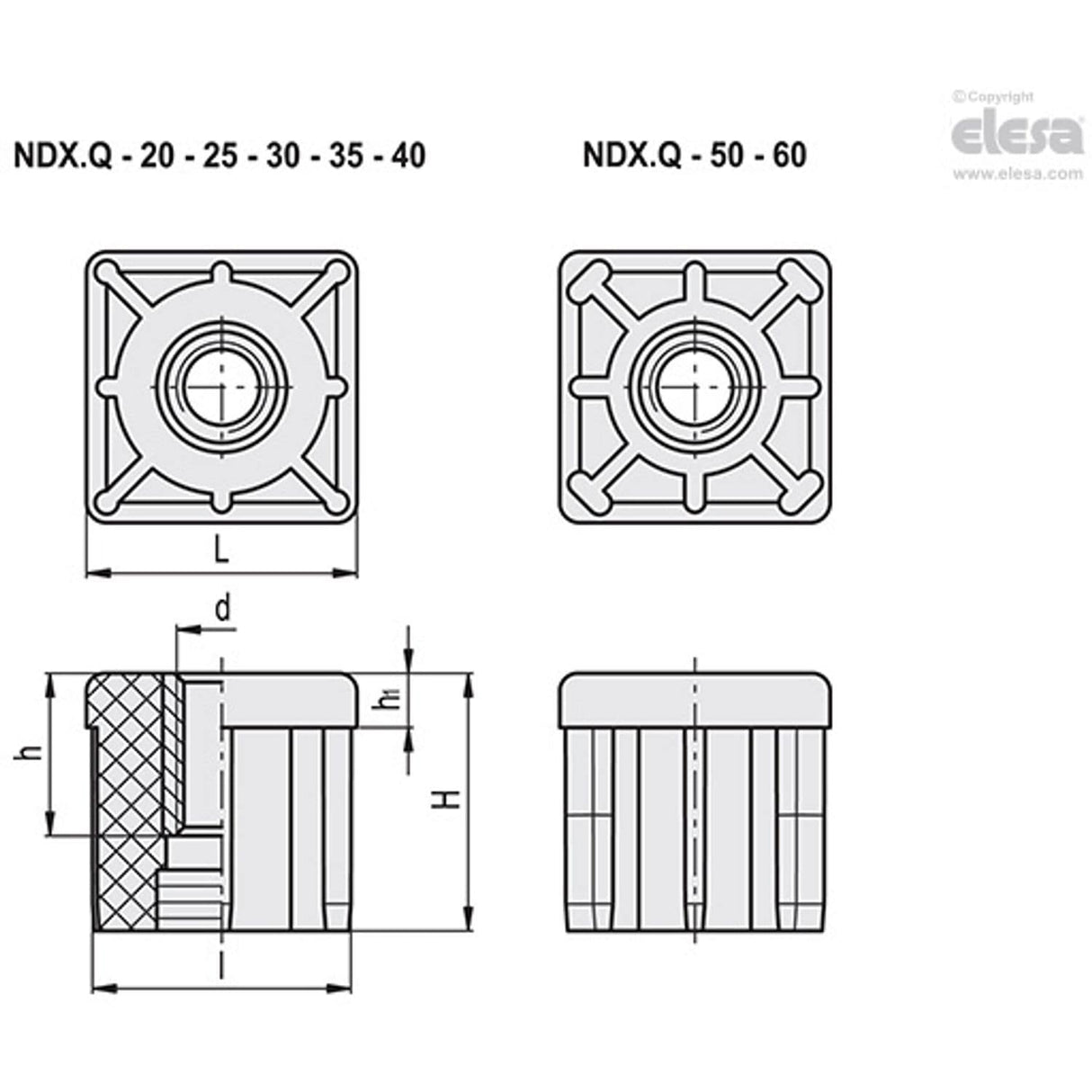

NDX.Q Square end-caps for tubes, For product drawing and dimensions refer to pdf Item data sheet.
| Weight | 43g |
| d | M12 |
| h | 10 |
| h1 | 8 |
| Tube Thickness | 1.5 |
| External Diameter | 35 |
| MFR Part No. | NDX.Q-35x1.5-M12 |
| H | 38 |
| L | 35 |
| Max. Static Load | 6000N |
| l | 32 |
| Inner Diameter | 32 |
