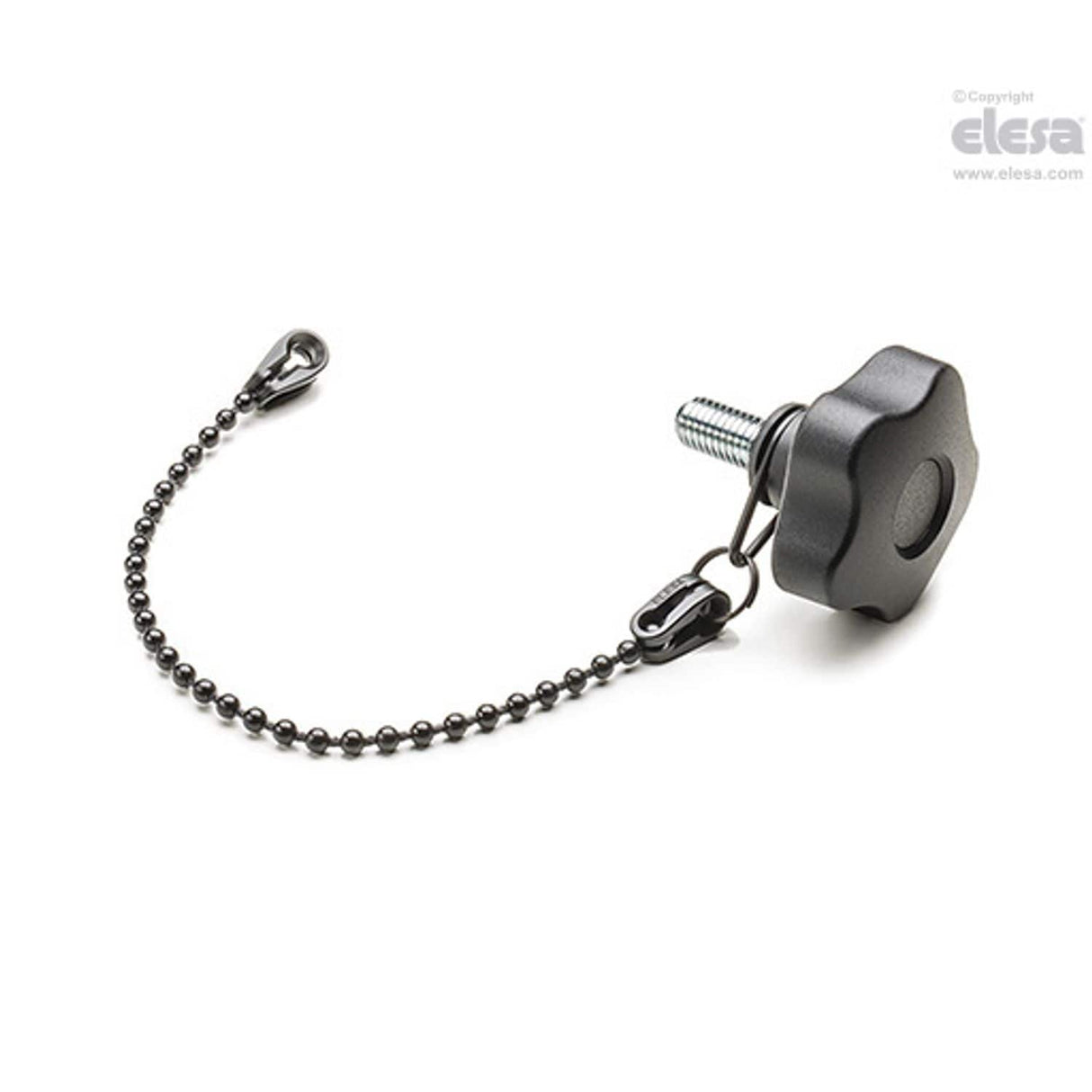

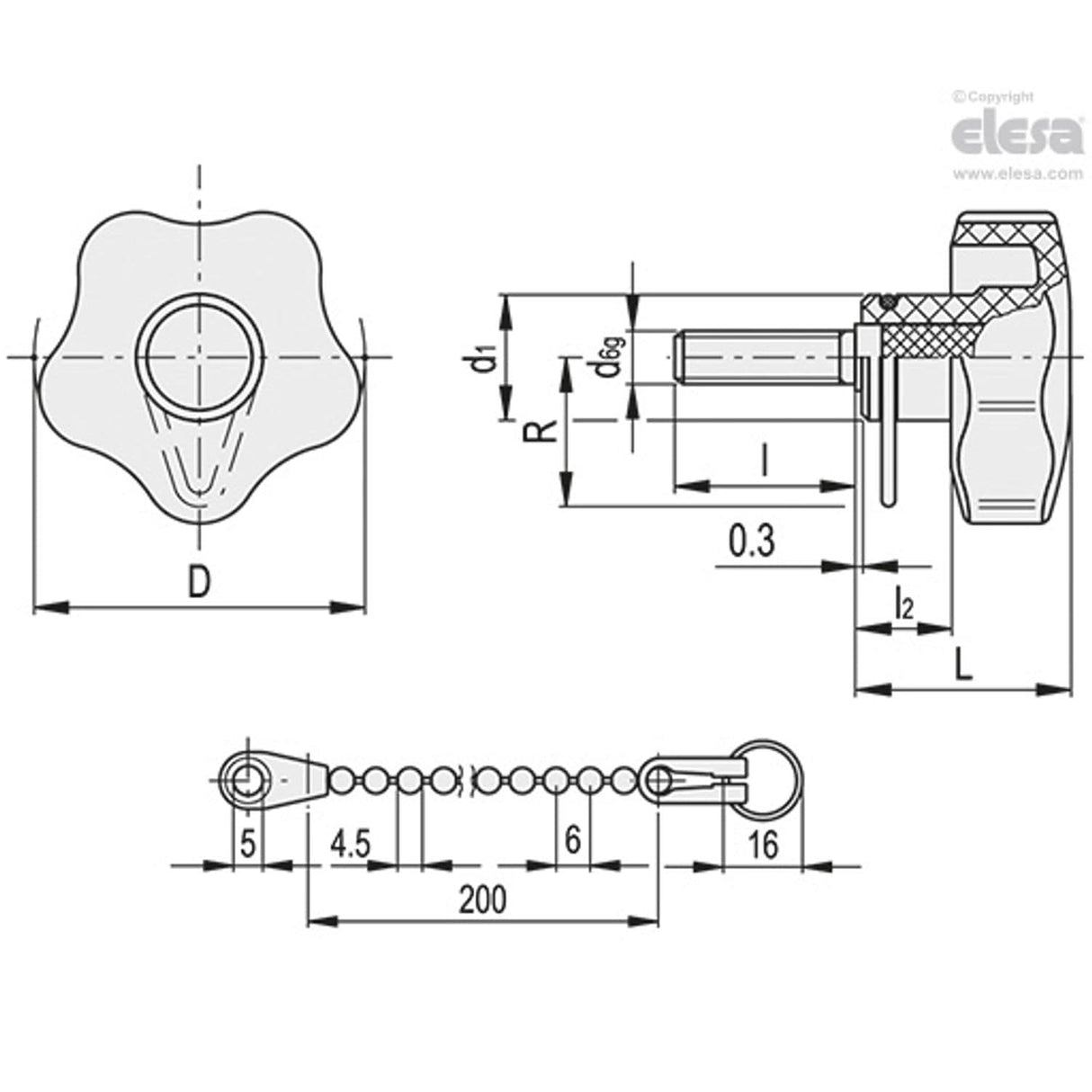

VCT-LP Lobe knobs, with retaining chain, technopolymer, Zinc-plated steel threaded stud For product drawing and dimensions refer to pdf Item data sheet.
| d(6g) | M10 |
| d1 | 19 |
| C# | 23Nm |
| D | 50 |
| Diameter | 50mm |
| R | 22.5 |
| l2 | 14 |
| MFR Part No. | VCT.50 p-M10x40-LP-C9 |
| L | 32 |
| Weight | 54g |
| l | 40 |
