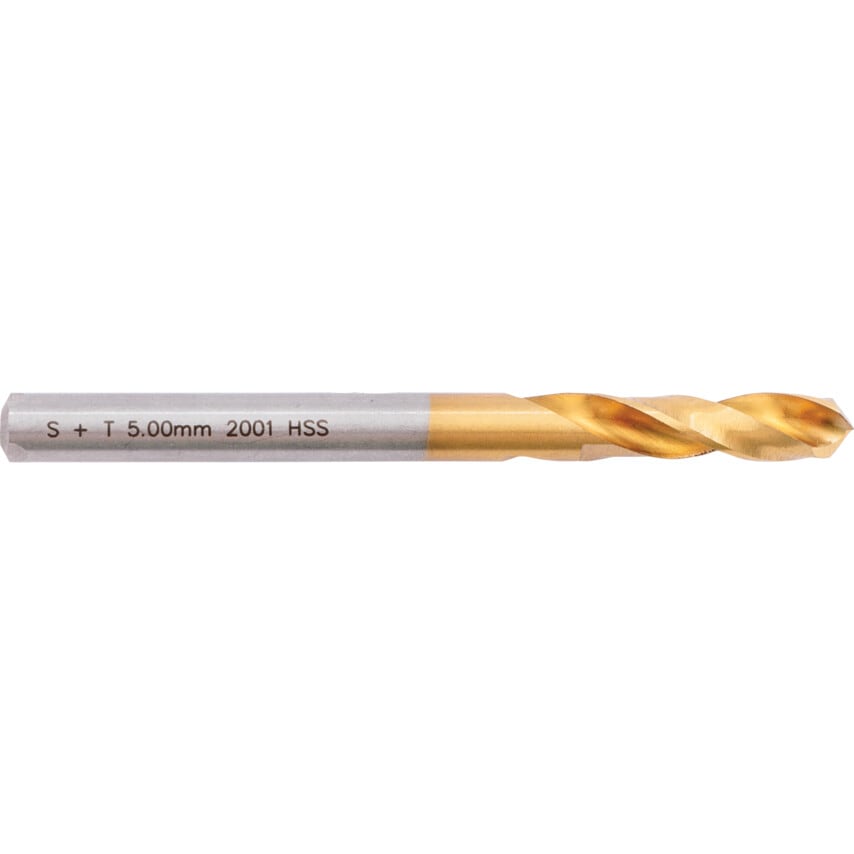

Series 2001 are general purpose drill for use on automatics and turret lathes. Suitable for drilling steels, cast iron, alloy steel and malleable cast iron. The TiN coating provides longer tool life or increased cutting speeds. Manufactured to BS 328, DIN 1897 RN.
Features and Benefits
High speed steel construction for improved durability
TiN coating for longer lifespan and increased cutting speeds
For drilling steels, cast iron, alloy steel and malleable cast iron
Standards
BS 328, DIN 1897 RN
| Drill Diameter Tolerance | H8 |
| Drill Diameter Metric | 5 |
| Web Thickness | Form A |
| System of Measurement | Metric |
| Shank Diameter Tolerance | F11 |
| Standards Met | BS 328 | DIN 1897RN |
| Coolant Delivery | External |
| Flute Length | 26mm |
| Material | HSS |
| Overall Length | 62mm |
| Point Angle | 118\u00b0 |
| Flute Type | Spiral |
| Finish/Coating | TiN |
| Helix Type | Normal Helix |
| Number of Pieces | 1 |
| Series | 2001 |
| Drill Diameter | 5mm |
| Cutting Direction | Right Hand |
| Number of Flutes | 2 |
