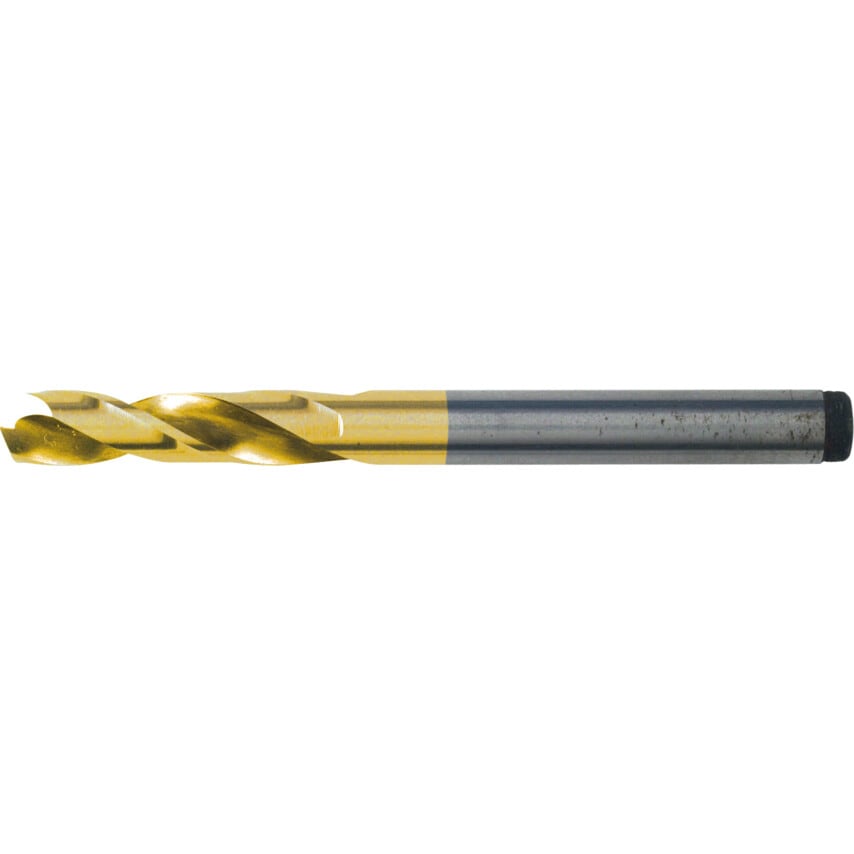

Series 2001 are general purpose drill for use on automatics and turret lathes. Suitable for drilling steels, cast iron, alloy steel and malleable cast iron. The TiN coating provides longer tool life or increased cutting speeds. Manufactured to BS 328, DIN 1897 RN.
Features and Benefits
High speed steel construction for improved durability
TiN coating for longer lifespan and increased cutting speeds
For drilling steels, cast iron, alloy steel and malleable cast iron
Standards
BS 328, DIN 1897 RN
| Overall Length | 43mm |
| Number of Flutes | 2 |
| Standards Met | BS 328 | DIN 1897RN |
| Drill Diameter Tolerance | H8 |
| Material | HSS |
| Point Angle | 118\u00b0 |
| Coolant Delivery | External |
| System of Measurement | Metric |
| Finish/Coating | TiN |
| Shank Diameter Tolerance | F11 |
| Number of Pieces | 1 |
| Drill Diameter | 2.5mm |
| Flute Length | 14mm |
| Cutting Direction | Right Hand |
| Series | 2001 |
| Helix Type | Normal Helix |
| Drill Diameter Metric | 2.5 |
| Flute Type | Spiral |
| Web Thickness | Form A |
