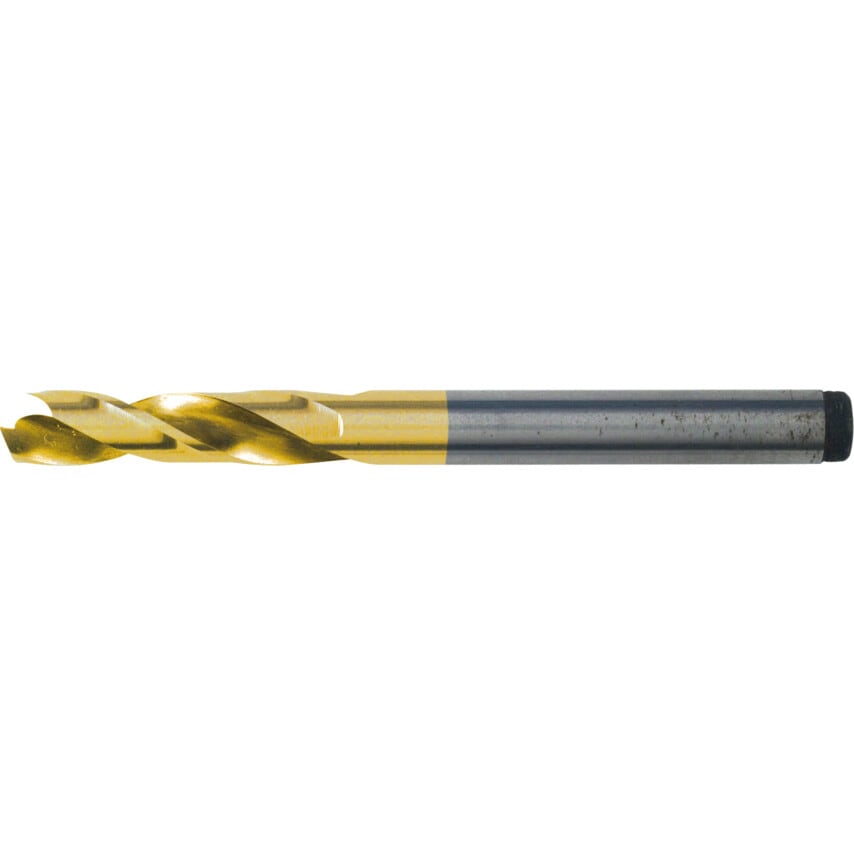

Series 2001 are general purpose drill for use on automatics and turret lathes. Suitable for drilling steels, cast iron, alloy steel and malleable cast iron. The TiN coating provides longer tool life or increased cutting speeds. Manufactured to BS 328, DIN 1897 RN.
Features and Benefits
High speed steel construction for improved durability
TiN coating for longer lifespan and increased cutting speeds
For drilling steels, cast iron, alloy steel and malleable cast iron
Standards
BS 328, DIN 1897 RN
| Web Thickness | Form A |
| System of Measurement | Metric |
| Drill Diameter | 3mm |
| Finish/Coating | TiN |
| Series | 2001 |
| Number of Pieces | 1 |
| Overall Length | 46mm |
| Standards Met | BS 328 | DIN 1897RN |
| Material | HSS |
| Number of Flutes | 2 |
| Drill Diameter Metric | 3 |
| Drill Diameter Tolerance | H8 |
| Cutting Direction | Right Hand |
| Helix Type | Normal Helix |
| Flute Type | Spiral |
| Coolant Delivery | External |
| Point Angle | 118\u00b0 |
| Flute Length | 16mm |
| Shank Diameter Tolerance | F11 |
