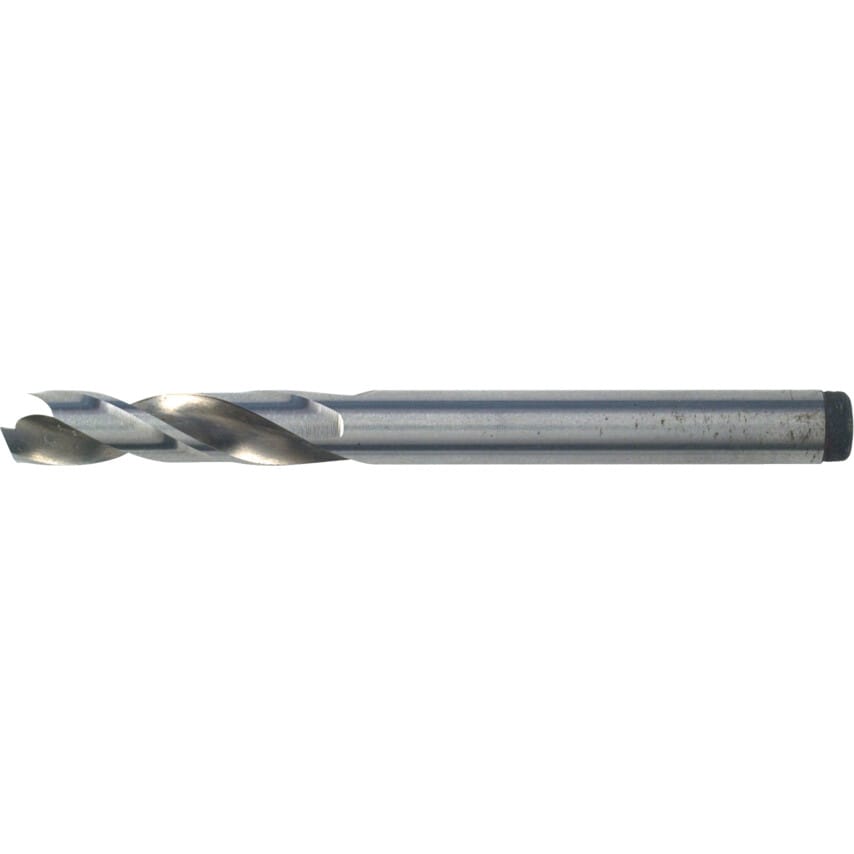

Series 2010 HSS-Co Straight Shank Heavy Duty Stub Drills - Metric
Metric
Heavy duty drill made of cobalt material with excellent heat resistance. For drilling steels up to 1,400N/mm2, stainless steel, heat resistant steels and bronze. Ideally suited for volume production on automatics. Point angle: 135, helix angle: normal, web thickness: strengthened, tolerance of diameter: h8, tolerance of shank: f11.
Manufactured to BS 328, DIN 1897RN. Point to DIN 1412C.
| Size | 11.0mm |
| Point Angle | 135\u00b0 |
| Finish/Coating | Bright |
| System of Measurement | Metric |
| Drill Diameter Metric | 11 |
| Helix Type | Normal Helix |
| Overall Length | 95mm |
| Number of Pieces | 1 |
| Flute Type | Spiral |
| Drill Diameter Tolerance | H8 |
| Drill Diameter | 11mm |
| Series | 2010 |
| Product Type | Stub Drills |
| Material | Cobalt High Speed Steel |
| Web Thickness | Form C |
| Point Type | Split Point |
| Standards Met | BS 328 | DIN 1412C | DIN 1897RN |
| Flute Length | 47mm |
| Cutting Direction | Right Hand |
| Shank Diameter Tolerance | F11 |
