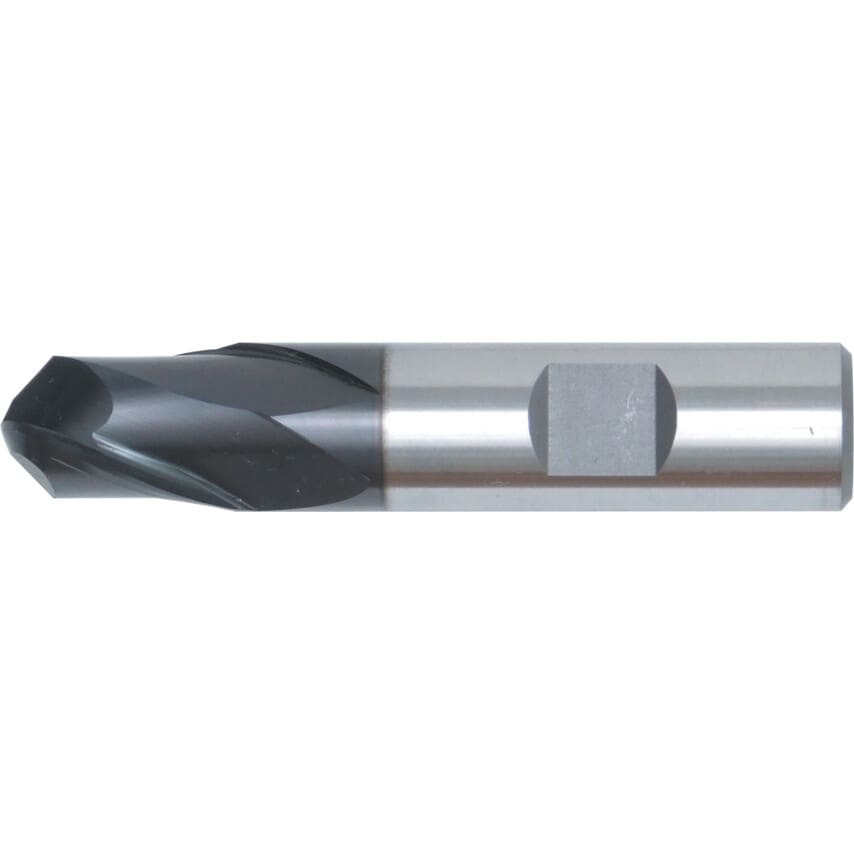

Series 97 - Regular
Centre cutting. Weldon shank to DIN 1835B. Shank diameter to h6. Dimensions to
DIN 844.
The latest enhancement of the SwissTech range, these cutters deliver excellent performance when cutting difficult materials, even at high speeds.
Manufactured from premium PM (Powder Metallurgy) tool steel, with an excellent cutting geometry. Designed for strength and rigidity, minimising vibration in high speed cutting applications and providing improved productivity.
These cutters are further enhanced by the SwissTech Peak Power? coating, suiting dry cutting applications, having higher oxidization resistance and hot-hardness than conventional TiALN or TiCN coatings, withstanding the high thermal loads associated with high speed cutting applications.
| Standards Met | DIN 1835B |
| System of Measurement | Metric |
| Shank Type | Weldon Flat |
| Helix Angle | 30\u00b0 |
| Coolant Delivery | External |
| Cutting Direction | Right Hand |
| Product Type | Slot Drills |
| Milling Cutter Type | Slot Drill |
| Cutter Style | Ball Nose |
| Overall Length | 51.0mm |
| Material | Powdered Metal Cobalt High Speed Steel |
| Series | Series 97 |
| Flute Type | Helical |
| Flute Length | 7.0mm |
| End Mill Type | Slot Drill |
| Shank Diameter | 6.0mm |
| Finish/Coating | Peak Power Coated |
| Number of Flutes | 2 |
| Length Type | Regular |
| Cutter Diameter | 4.0mm |
