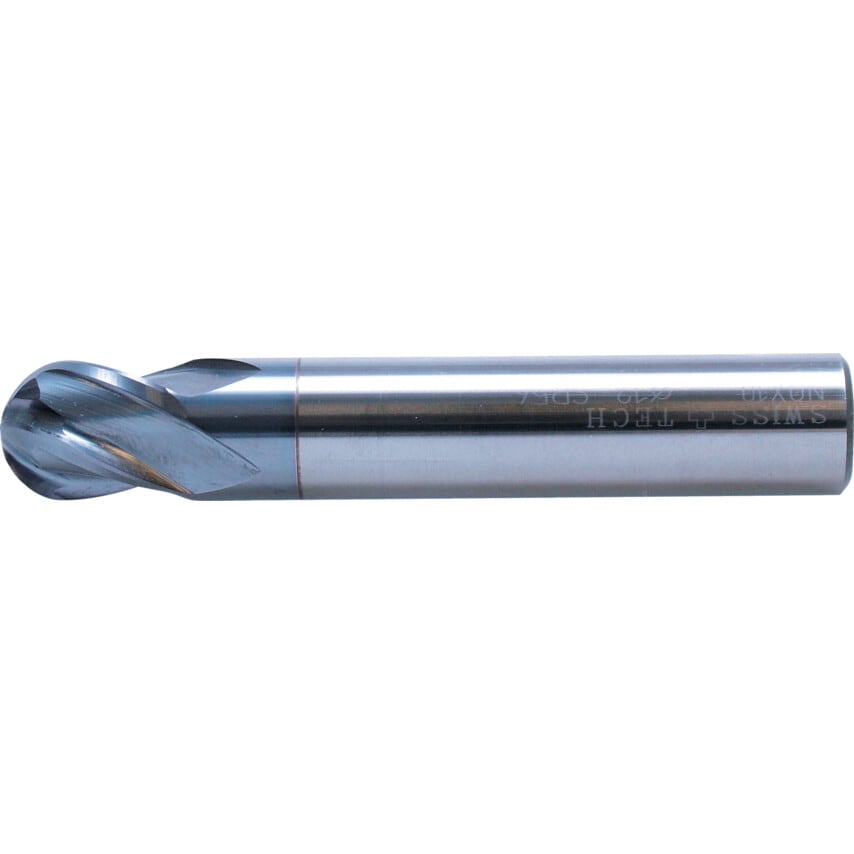

Series 56 - Short Series, TiCN Coated
Centre cutting. To Manufacturers Standards. Cutting diameter to h10. Shank diameter to h6.
Available as Carbide Uncoated (for general production machining) or TiCN Coated (extends cutter tool life and improves work material surface finish).
| Ball Nose Type | Ball Nose End Mill |
| Milling Cutter Type | End Mills |
| Shank Diameter | 6mm |
| Material Grade | Micrograin |
| Milling Application | High-feed Milling |
| Cutting Direction | Right Hand |
| Length Type | Short |
| Shank Type | Plain Round |
| Cutter Diameter | 3mm |
| Cutter Style | Ball Nose |
| Material Application | Nonferrous Metals |
| Reach Type | Standard Neck |
| Flute Type | Helical |
| Flute Length | 4mm |
| Number of Flutes | 4 |
| Number of Cutting Ends | 1 |
| Plunge Type | Centre Cutting |
| Helix Direction | Right Hand |
| Series | 56 Short |
| Overall Length | 48mm |
| Finish/Coating | TiCN |
| Coolant Delivery | External |
| System of Measurement | Metric |
| End Mill Type | End Mill |
| Material | Carbide |
