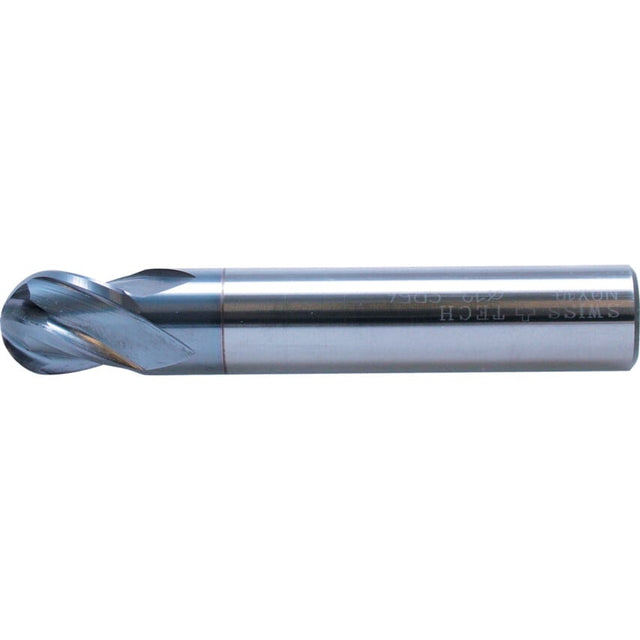

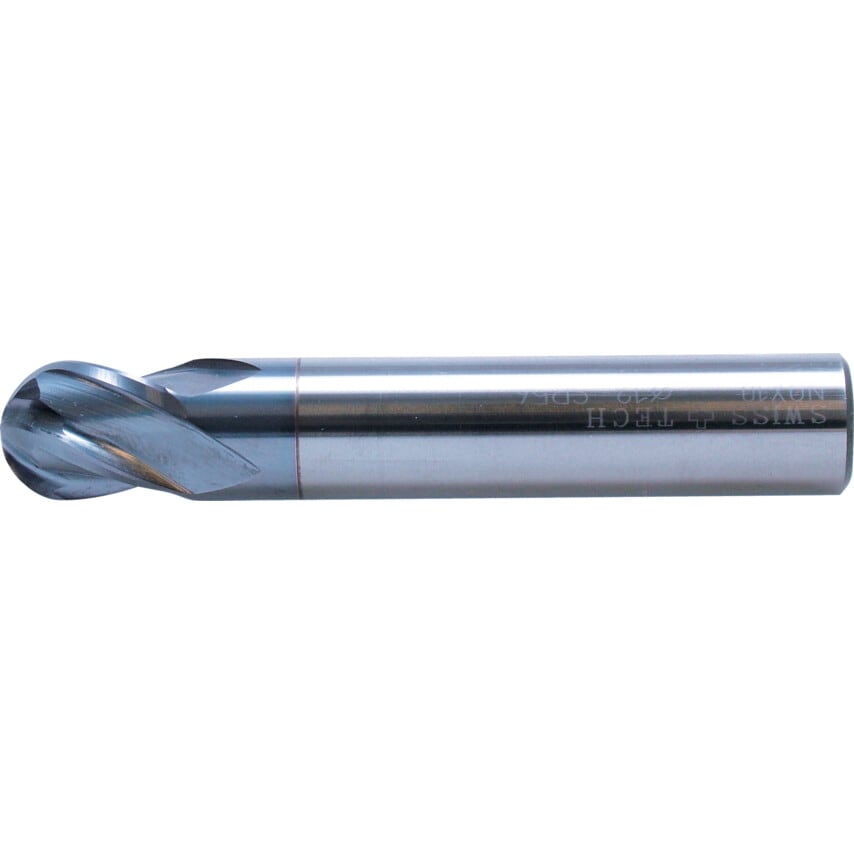

Series 56 - Short Series, TiCN Coated
Centre cutting. To Manufacturers Standards. Cutting diameter to h10. Shank diameter to h6.
Available as Carbide Uncoated (for general production machining) or TiCN Coated (extends cutter tool life and improves work material surface finish).
| Milling Cutter Type | End Mills |
| Overall Length | 51mm |
| Reach Type | Standard Neck |
| Cutter Diameter | 5mm |
| Cutting Direction | Right Hand |
| Coolant Delivery | External |
| Flute Type | Helical |
| Finish/Coating | TiCN |
| Milling Application | High-feed Milling |
| Series | 56 Short |
| Shank Diameter | 6mm |
| System of Measurement | Metric |
| Flute Length | 7mm |
| Helix Direction | Right Hand |
| Material Grade | Micrograin |
| Number of Cutting Ends | 1 |
| Shank Type | Plain Round |
| Plunge Type | Centre Cutting |
| End Mill Type | End Mill |
| Length Type | Short |
| Cutter Style | Ball Nose |
| Material Application | Nonferrous Metals |
| Ball Nose Type | Ball Nose End Mill |
| Number of Flutes | 4 |
| Material | Carbide |
