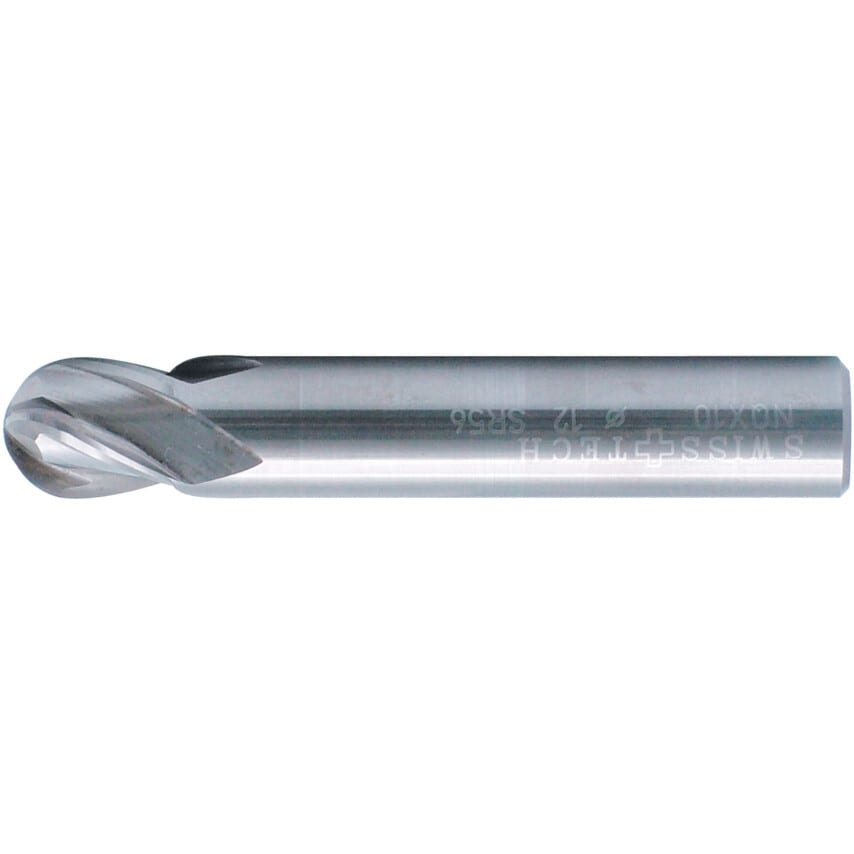

Series 56 - Short Series
Centre cutting. Cutting diameter to h10. Shank diameter to h6.
Available as Carbide Uncoated (for general production machining) or TiCN Coated (extends cutter tool life and improves work material surface finish).
Conforms to manufacturers standards
| Flute Length | 10mm |
| Shank Type | Plain Round |
| Shank Diameter Tolerance | H6 |
| Cutter Style | Ball Nose |
| Coolant Delivery | External |
| Length Type | Short |
| Cutter Diameter | 10mm |
| Flute Type | Helical |
| Shank Diameter | 10mm |
| Milling Cutter Type | End Mills |
| Cutting Direction | Right Hand |
| Finish/Coating | Uncoated |
| Plunge Type | Centre Cutting |
| Material Grade | Micrograin |
| Overall Length | 60mm |
| Ball Nose Type | Ball Nose End Mill |
| Series | 56 Short |
| System of Measurement | Metric |
| Helix Direction | Right Hand |
| Standards Met | DIN 7160 | DIN 7208 |
| Material | Solid Carbide |
| Number of Flutes | 4 |
| Cutter Diameter Tolerance | H10 |
