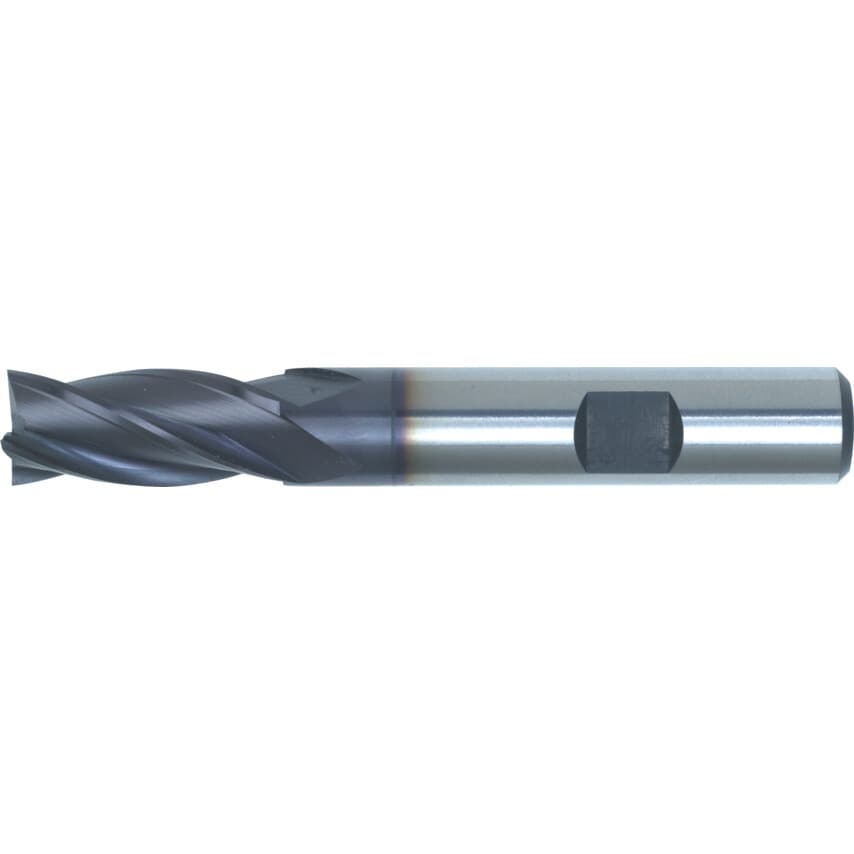

Series 09 - Regular Series, TiALN Coated
Dimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B.
Shank cutting diameter:
3-6mm to +0.04 -0.0.
8-20mm to +0.05 -0.0.
HSS-Co 8% Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Shank Type | Weldon Flat |
| Cutting Direction | Right Hand |
| Flute Length | 22.0mm |
| Number of Flutes | 4 |
| Cutter Diameter | 10.0mm |
| Coolant Delivery | External |
| Overall Length | 72.0mm |
| Standards Met | DIN 844 | DIN 1835B |
| Plunge Type | Centre Cutting |
| Milling Cutter Type | End Mills |
| Material | Cobalt High Speed Steel |
| Finish/Coating | TiAlN |
| System of Measurement | Metric |
| Series | 09 |
| Shank Diameter Tolerance | H6 |
| Flute Type | Helical |
| End Mill Type | End Mill |
| Cutter Style | Square End |
| Length Type | Regular |
| Shank Diameter | 10.0mm |
| Material Grade | M42 |
