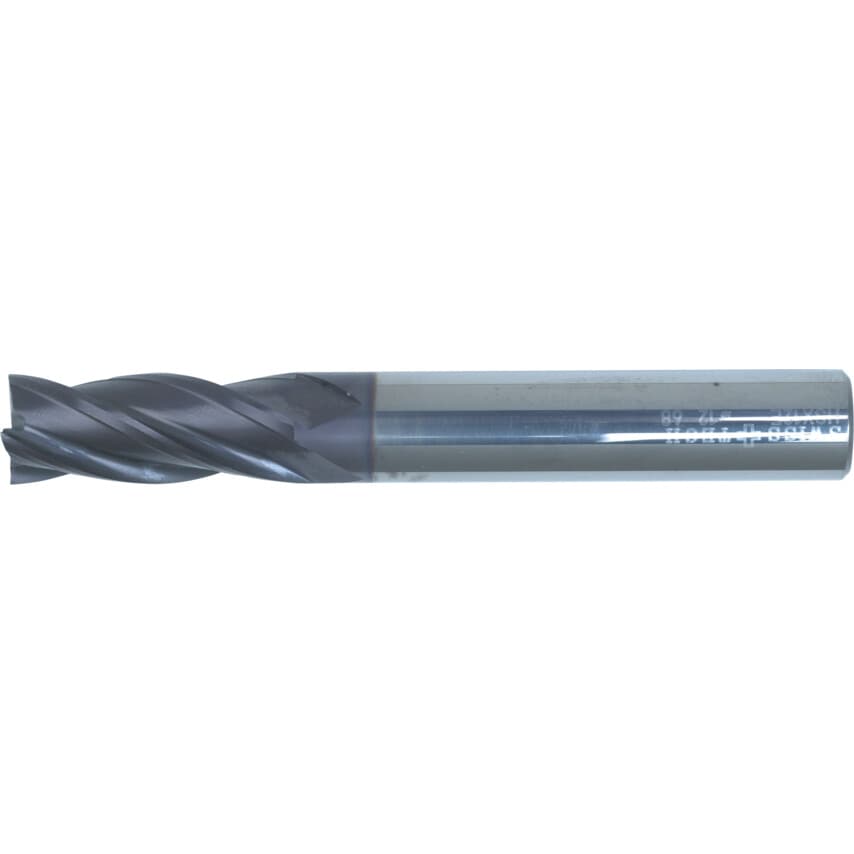

Series 68 - Long Series
Dimensions to DIN 844. Centre cutting. To Manufacturers Standards. Cutting diameter to h10. Shank diameter to h6. EMQ-4PS/L Carbide Q-Coat.
'Q-Coat' Coating has been specifically developed to give carbide cutters the 'edge' when faced with severe machining conditions. Materials up to 66 HRC. Dry cutting. Die and Mould machining. Reduced coolant usage and disposal. Up to 100% longer cutter life. Reduced manufacturing costs. A multi-layer coating capable of operating at higher speed and feed. Excellent oxidisation resistance. High speed machining. Surface hardness 3300HV. Surface coefficient against steel 0.25. Thickness of coating 305um. Maximum working temperature 850. Re-coating service also available.
| Standards Met | DIN 844 |
| End Mill Type | End Mill |
| Series | 68 |
| Milling Cutter Type | End Mills |
| Shank Type | Plain Round |
| Shank Diameter | 6.0mm |
| Number of Flutes | 4 |
| Cutter Diameter | 3.0mm |
| Plunge Type | Centre Cutting |
| Material | Carbide |
| Overall Length | 50.0mm |
| Length Type | Long |
| Flute Length | 12.0mm |
| Finish/Coating | AlTiN |
| System of Measurement | Metric |
| Cutter Diameter Tolerance | H10 |
| Coolant Delivery | External |
| Shank Diameter Tolerance | H6 |
| Product Type | End Mills |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Cutter Style | Square End |
