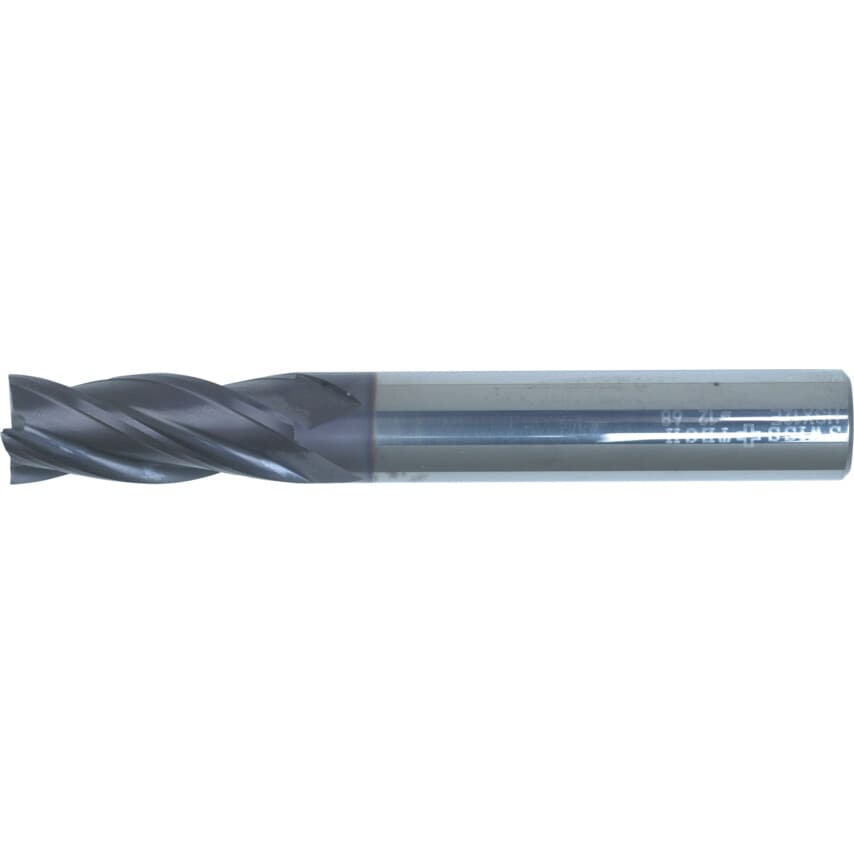

Series 68 - Long Series
Dimensions to DIN 844. Centre cutting. To Manufacturers Standards. Cutting diameter to h10. Shank diameter to h6. EMQ-4PS/L Carbide Q-Coat.
'Q-Coat' Coating has been specifically developed to give carbide cutters the 'edge' when faced with severe machining conditions. Materials up to 66 HRC. Dry cutting. Die and Mould machining. Reduced coolant usage and disposal. Up to 100% longer cutter life. Reduced manufacturing costs. A multi-layer coating capable of operating at higher speed and feed. Excellent oxidisation resistance. High speed machining. Surface hardness 3300HV. Surface coefficient against steel 0.25. Thickness of coating 305um. Maximum working temperature 850. Re-coating service also available.
| Shank Diameter Tolerance | H6 |
| Cutter Style | Square End |
| Milling Cutter Type | End Mills |
| Length Type | Long |
| Cutter Diameter | 4.0mm |
| Finish/Coating | AlTiN |
| Flute Length | 15.0mm |
| End Mill Type | End Mill |
| Series | 68 |
| Shank Type | Plain Round |
| Shank Diameter | 6.0mm |
| Plunge Type | Centre Cutting |
| Material | Carbide |
| Coolant Delivery | External |
| Number of Flutes | 4 |
| Standards Met | DIN 844 |
| Cutter Diameter Tolerance | H10 |
| Flute Type | Helical |
| System of Measurement | Metric |
| Cutting Direction | Right Hand |
| Product Type | End Mills |
| Overall Length | 50.0mm |
