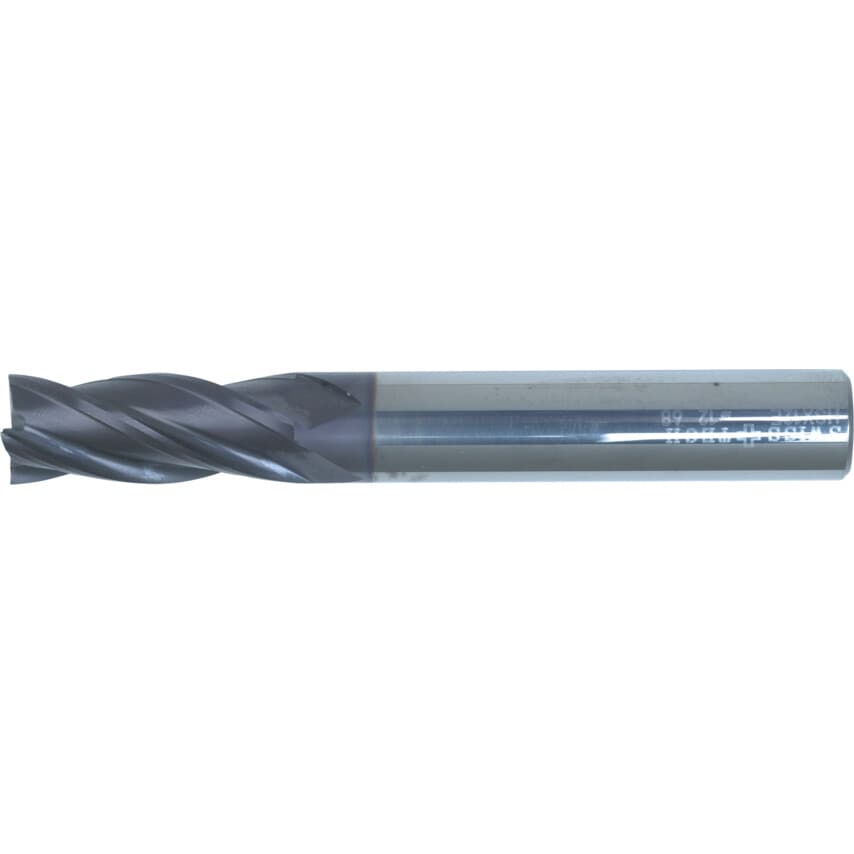

Series 68 - Long Series
Dimensions to DIN 844. Centre cutting. To Manufacturers Standards. Cutting diameter to h10. Shank diameter to h6. EMQ-4PS/L Carbide Q-Coat.
'Q-Coat' Coating has been specifically developed to give carbide cutters the 'edge' when faced with severe machining conditions. Materials up to 66 HRC. Dry cutting. Die and Mould machining. Reduced coolant usage and disposal. Up to 100% longer cutter life. Reduced manufacturing costs. A multi-layer coating capable of operating at higher speed and feed. Excellent oxidisation resistance. High speed machining. Surface hardness 3300HV. Surface coefficient against steel 0.25. Thickness of coating 305um. Maximum working temperature 850. Re-coating service also available.
| Number of Flutes | 4 |
| Flute Length | 30.0mm |
| Material | Carbide |
| Milling Cutter Type | End Mills |
| Cutting Direction | Right Hand |
| Shank Diameter Tolerance | H6 |
| Shank Diameter | 12.00mm |
| Standards Met | DIN 844 |
| System of Measurement | Metric |
| Shank Type | Plain Round |
| Product Type | End Mills |
| Coolant Delivery | External |
| Cutter Style | Square End |
| Flute Type | Helical |
| Overall Length | 90.0mm |
| Finish/Coating | AlTiN |
| End Mill Type | End Mill |
| Length Type | Long |
| Series | 68 |
| Cutter Diameter | 12.0mm |
| Plunge Type | Centre Cutting |
| Cutter Diameter Tolerance | H10 |
