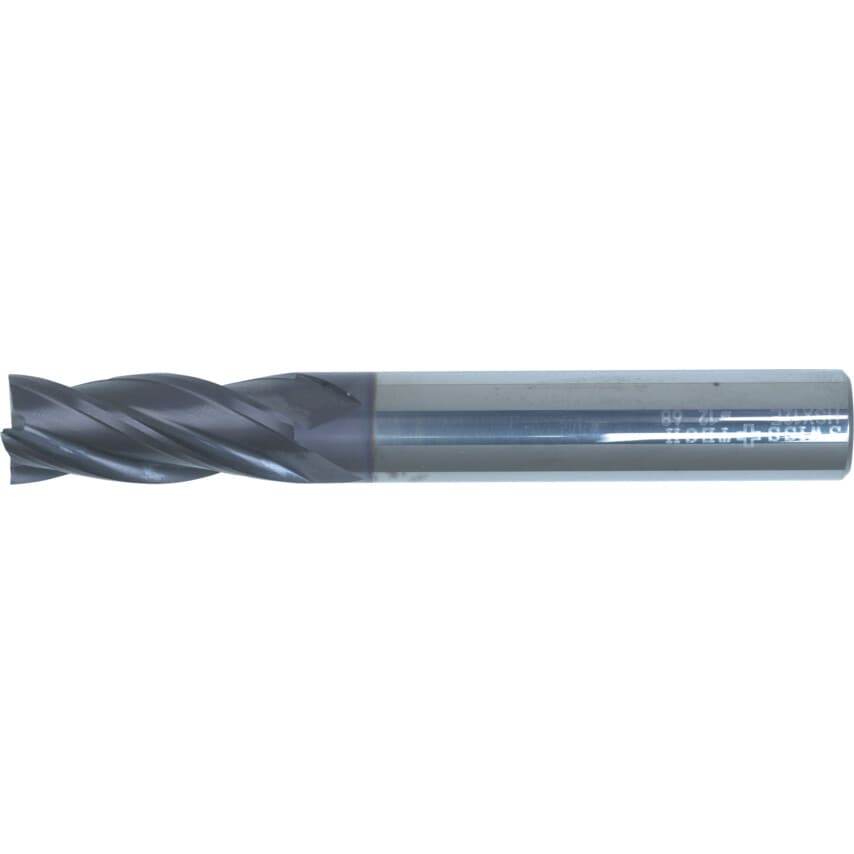

Series 68 - Long Series
Dimensions to DIN 844. Centre cutting. To Manufacturers Standards. Cutting diameter to h10. Shank diameter to h6. EMQ-4PS/L Carbide Q-Coat.
'Q-Coat' Coating has been specifically developed to give carbide cutters the 'edge' when faced with severe machining conditions. Materials up to 66 HRC. Dry cutting. Die and Mould machining. Reduced coolant usage and disposal. Up to 100% longer cutter life. Reduced manufacturing costs. A multi-layer coating capable of operating at higher speed and feed. Excellent oxidisation resistance. High speed machining. Surface hardness 3300HV. Surface coefficient against steel 0.25. Thickness of coating 305um. Maximum working temperature 850. Re-coating service also available.
| Cutting Direction | Right Hand |
| Shank Type | Plain Round |
| Overall Length | 70.0mm |
| Number of Flutes | 4 |
| System of Measurement | Metric |
| Material | Carbide |
| Length Type | Long |
| Finish/Coating | AlTiN |
| End Mill Type | End Mill |
| Flute Length | 25.0mm |
| Cutter Style | Square End |
| Shank Diameter | 8.0mm |
| Series | 68 |
| Cutter Diameter Tolerance | H10 |
| Shank Diameter Tolerance | H6 |
| Product Type | End Mills |
| Cutter Diameter | 8.0mm |
| Flute Type | Helical |
| Plunge Type | Centre Cutting |
| Coolant Delivery | External |
| Milling Cutter Type | End Mills |
| Standards Met | DIN 844 |
