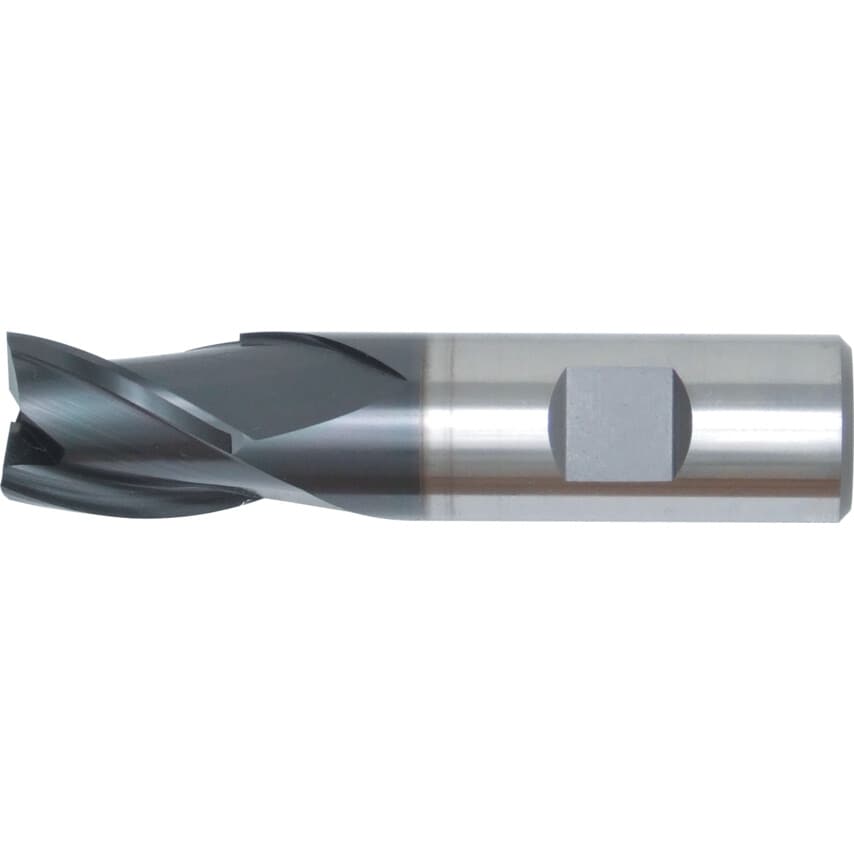

Series 93 - Regular
Centre cutting. Weldon shank to DIN 1835B. Shank diameter to h6. Dimensions to DIN 844.
The latest enhancement of the SwissTech range, these cutters deliver excellent performance when cutting difficult materials, even at high speeds.
Manufactured from premium PM (Powder Metallurgy) tool steel, with an excellent cutting geometry. Designed for strength and rigidity, minimising vibration in high speed cutting applications and providing improved productivity.
These cutters are further enhanced by the SwissTech Peak Power coating, suiting dry cutting applications, having higher oxidization resistance and hot-hardness than conventional TiALN or TiCN coatings, withstanding the high thermal loads associated with high speed cutting applications.
| Coolant Delivery | External |
| Shank Type | Weldon Flat |
| Number of Flutes | 3 |
| Cutting Direction | Right Hand |
| Milling Cutter Type | End Mills |
| Material Grade | M35 |
| Helix Direction | Right Hand |
| Shank Diameter Tolerance | H6 |
| Cutter Diameter | 6mm |
| Standards Met | DIN 844 | DIN 1835B |
| Material | Powdered Metal Cobalt High Speed Steel |
| Shank Diameter | 6mm |
| End Mill Type | End Mill |
| Cutter Diameter Tolerance | e8 |
| Flute Length | 8mm |
| Length Type | Regular |
| System of Measurement | Metric |
| Series | 93 |
| Finish/Coating | TiAlN |
| Milling Application | Finishing | Profiling | Semi-finishing | Slotting |
| Flute Type | Helical |
| Overall Length | 52mm |
| Plunge Type | Centre Cutting |
| Reach Type | Standard Neck |
| Material Application | Alloy Steel | Carbon Steel | Cast Iron | Copper | Stainless Steels |
| Helix Angle | 30\u00b0 |
| Cutter Style | Square End |
