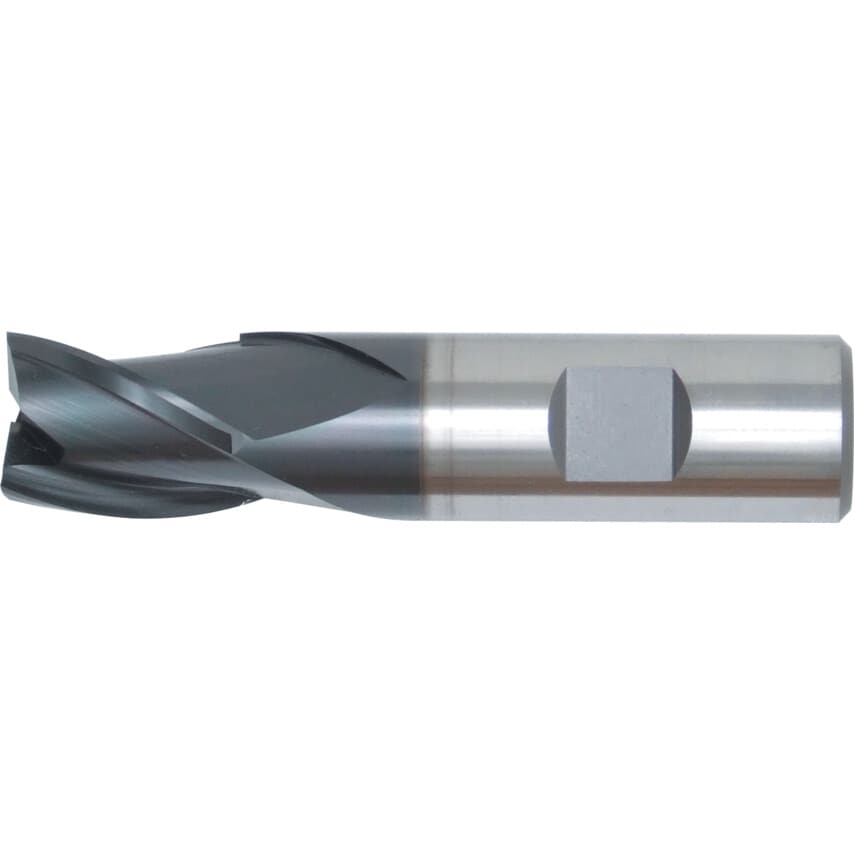

Series 93 - Regular
Centre cutting. Weldon shank to DIN 1835B. Shank diameter to h6. Dimensions to DIN 844.
The latest enhancement of the SwissTech range, these cutters deliver excellent performance when cutting difficult materials, even at high speeds.
Manufactured from premium PM (Powder Metallurgy) tool steel, with an excellent cutting geometry. Designed for strength and rigidity, minimising vibration in high speed cutting applications and providing improved productivity.
These cutters are further enhanced by the SwissTech Peak Power coating, suiting dry cutting applications, having higher oxidization resistance and hot-hardness than conventional TiALN or TiCN coatings, withstanding the high thermal loads associated with high speed cutting applications.
| Shank Diameter | 20mm |
| Cutter Diameter | 20mm |
| Standards Met | DIN 844 | DIN 1835B |
| System of Measurement | Metric |
| Flute Type | Helical |
| Shank Diameter Tolerance | H6 |
| Finish/Coating | TiAlN |
| Series | 93 |
| Material Grade | M35 |
| End Mill Type | End Mill |
| Reach Type | Standard Neck |
| Coolant Delivery | External |
| Shank Type | Weldon Flat |
| Cutter Diameter Tolerance | e8 |
| Length Type | Regular |
| Material | Powdered Metal Cobalt High Speed Steel |
| Helix Direction | Right Hand |
| Helix Angle | 30\u00b0 |
| Cutting Direction | Right Hand |
| Material Application | Alloy Steel | Carbon Steel | Cast Iron | Copper | Stainless Steels |
| Milling Application | Finishing | Profiling | Semi-finishing | Slotting |
| Flute Length | 22mm |
| Number of Flutes | 3 |
| Cutter Style | Square End |
| Overall Length | 88mm |
| Milling Cutter Type | End Mills |
| Plunge Type | Centre Cutting |
