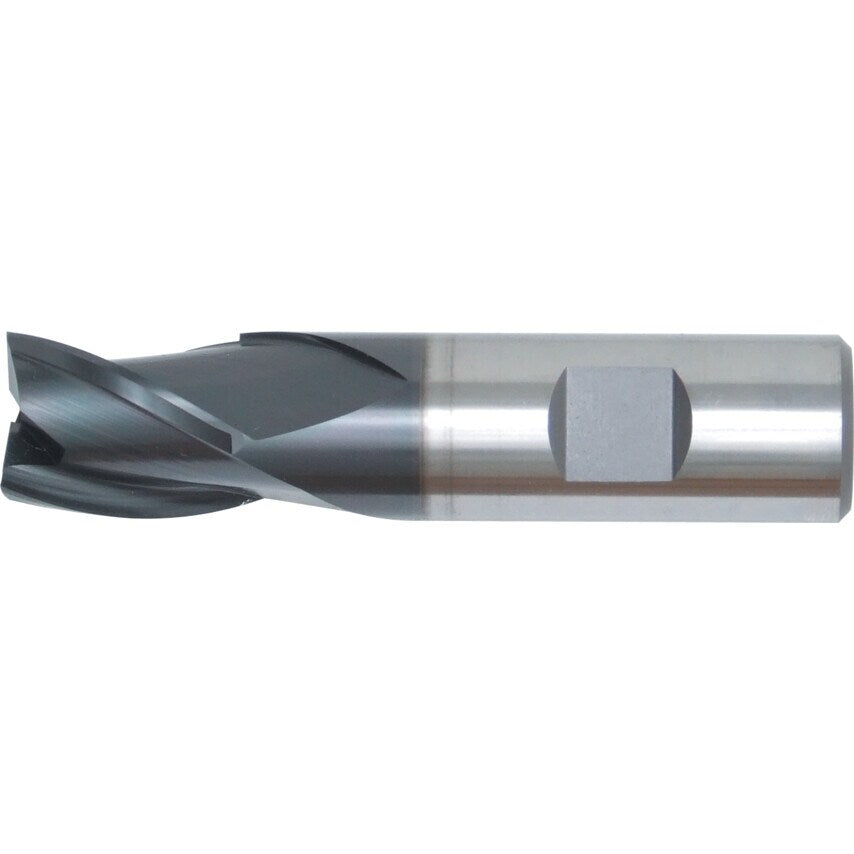

Series 93 - Regular
Centre cutting. Weldon shank to DIN 1835B. Shank diameter to h6. Dimensions to DIN 844.
The latest enhancement of the SwissTech range, these cutters deliver excellent performance when cutting difficult materials, even at high speeds.
Manufactured from premium PM (Powder Metallurgy) tool steel, with an excellent cutting geometry. Designed for strength and rigidity, minimising vibration in high speed cutting applications and providing improved productivity.
These cutters are further enhanced by the SwissTech Peak Power coating, suiting dry cutting applications, having higher oxidization resistance and hot-hardness than conventional TiALN or TiCN coatings, withstanding the high thermal loads associated with high speed cutting applications.
| Coolant Delivery | External |
| Cutting Direction | Right Hand |
| Plunge Type | Centre Cutting |
| End Mill Type | End Mill |
| Material Application | Alloy Steel | Carbon Steel | Cast Iron | Copper | Stainless Steels |
| Helix Angle | 30\u00b0 |
| Material Grade | M35 |
| Flute Length | 7mm |
| Shank Diameter | 6mm |
| Cutter Diameter Tolerance | e8 |
| Series | 93 |
| Milling Cutter Type | End Mills |
| Milling Application | Finishing | Profiling | Semi-finishing | Slotting |
| Finish/Coating | TiAlN |
| Reach Type | Standard Neck |
| Helix Direction | Right Hand |
| System of Measurement | Metric |
| Material | Powdered Metal Cobalt High Speed Steel |
| Flute Type | Helical |
| Cutter Style | Square End |
| Cutter Diameter | 4mm |
| Standards Met | DIN 844 | DIN 1835B |
| Shank Type | Weldon Flat |
| Overall Length | 51mm |
| Length Type | Regular |
| Shank Diameter Tolerance | H6 |
| Number of Flutes | 3 |
