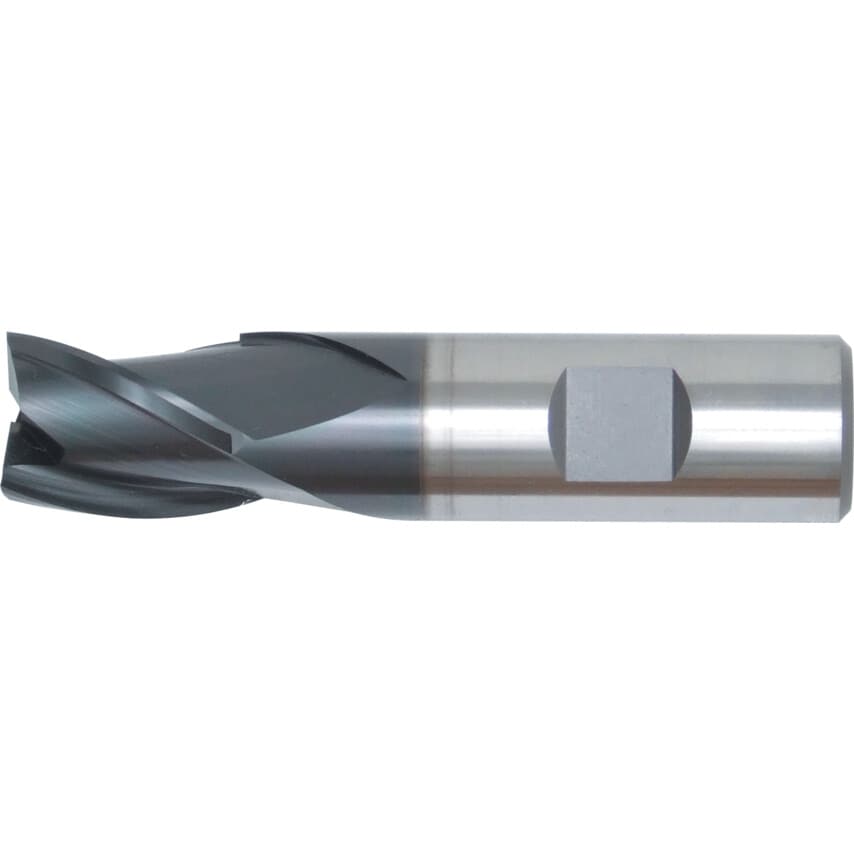

Series 93 - Regular
Centre cutting. Weldon shank to DIN 1835B. Shank diameter to h6. Dimensions to DIN 844.
The latest enhancement of the SwissTech range, these cutters deliver excellent performance when cutting difficult materials, even at high speeds.
Manufactured from premium PM (Powder Metallurgy) tool steel, with an excellent cutting geometry. Designed for strength and rigidity, minimising vibration in high speed cutting applications and providing improved productivity.
These cutters are further enhanced by the SwissTech Peak Power coating, suiting dry cutting applications, having higher oxidization resistance and hot-hardness than conventional TiALN or TiCN coatings, withstanding the high thermal loads associated with high speed cutting applications.
| Finish/Coating | TiAlN |
| End Mill Type | End Mill |
| Flute Type | Helical |
| Flute Length | 19mm |
| Shank Diameter Tolerance | H6 |
| Coolant Delivery | External |
| Shank Diameter | 16mm |
| Cutter Diameter | 16mm |
| Overall Length | 79mm |
| Reach Type | Standard Neck |
| Length Type | Regular |
| Shank Type | Weldon Flat |
| Helix Angle | 30\u00b0 |
| Cutter Diameter Tolerance | e8 |
| Milling Application | Finishing | Profiling | Semi-finishing | Slotting |
| Number of Flutes | 3 |
| System of Measurement | Metric |
| Material Grade | M35 |
| Series | 93 |
| Material | Powdered Metal Cobalt High Speed Steel |
| Plunge Type | Centre Cutting |
| Helix Direction | Right Hand |
| Material Application | Alloy Steel | Carbon Steel | Cast Iron | Copper | Stainless Steels |
| Milling Cutter Type | End Mills |
| Cutting Direction | Right Hand |
| Cutter Style | Square End |
| Standards Met | DIN 844 | DIN 1835B |
