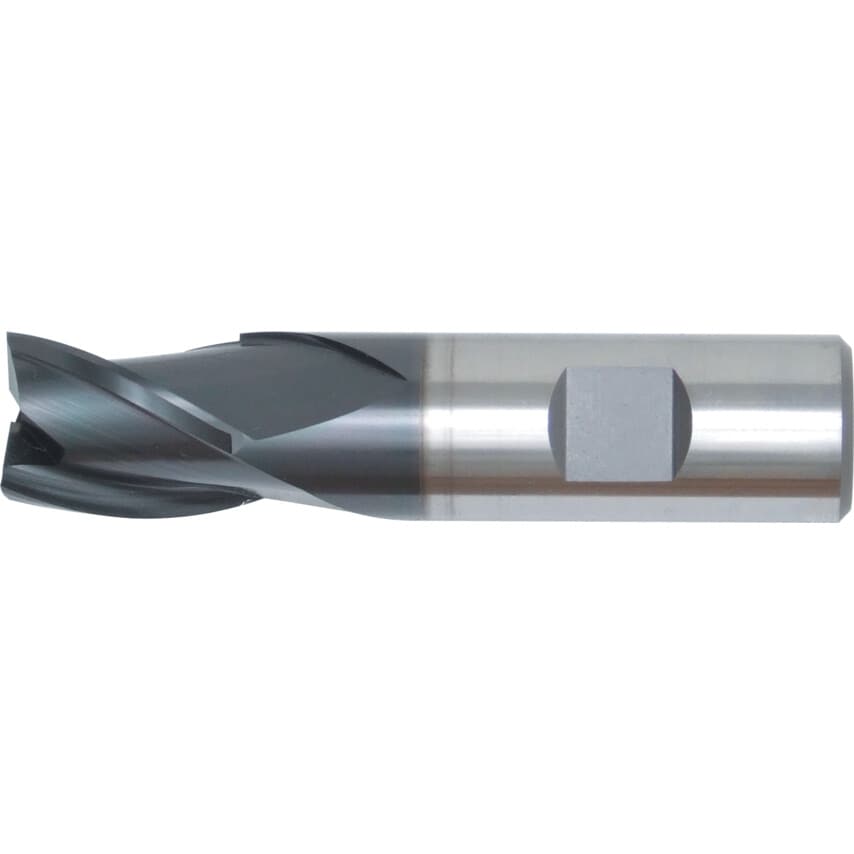

Series 93 - Regular
Centre cutting. Weldon shank to DIN 1835B. Shank diameter to h6. Dimensions to DIN 844.
The latest enhancement of the SwissTech range, these cutters deliver excellent performance when cutting difficult materials, even at high speeds.
Manufactured from premium PM (Powder Metallurgy) tool steel, with an excellent cutting geometry. Designed for strength and rigidity, minimising vibration in high speed cutting applications and providing improved productivity.
These cutters are further enhanced by the SwissTech Peak Power coating, suiting dry cutting applications, having higher oxidization resistance and hot-hardness than conventional TiALN or TiCN coatings, withstanding the high thermal loads associated with high speed cutting applications.
| Helix Angle | 30\u00b0 |
| Overall Length | 61mm |
| Shank Diameter Tolerance | H6 |
| Reach Type | Standard Neck |
| Cutter Diameter Tolerance | e8 |
| Milling Cutter Type | End Mills |
| System of Measurement | Metric |
| Coolant Delivery | External |
| Standards Met | DIN 844 | DIN 1835B |
| Shank Diameter | 10mm |
| Flute Type | Helical |
| Number of Flutes | 3 |
| Flute Length | 11mm |
| Helix Direction | Right Hand |
| End Mill Type | End Mill |
| Cutter Style | Square End |
| Series | 93 |
| Cutter Diameter | 8mm |
| Shank Type | Weldon Flat |
| Material | Powdered Metal Cobalt High Speed Steel |
| Finish/Coating | TiAlN |
| Cutting Direction | Right Hand |
| Material Application | Alloy Steel | Carbon Steel | Cast Iron | Copper | Stainless Steels |
| Material Grade | M35 |
| Plunge Type | Centre Cutting |
| Milling Application | Finishing | Profiling | Semi-finishing | Slotting |
| Length Type | Regular |
