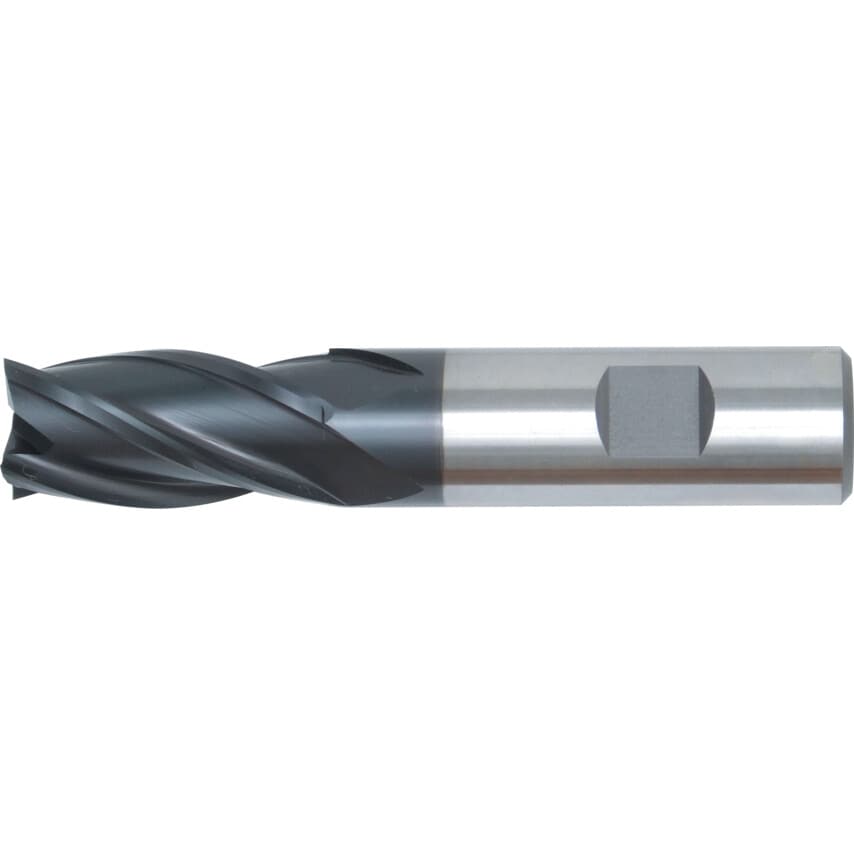

Series 95 - Regular
Centre cutting. Weldon shank to DIN 1835B. Shank diameter to h6. Dimensions to DIN 844.
The latest enhancement of the SwissTech range, these cutters deliver excellent performance when cutting difficult materials, even at high speeds.
Manufactured from premium PM (Powder Metallurgy) tool steel, with an excellent cutting geometry. Designed for strength and rigidity, minimising vibration in high speed cutting applications and providing improved productivity.
These cutters are further enhanced by the SwissTech Peak Power? coating, suiting dry cutting applications, having higher oxidization resistance and hot-hardness than conventional TiALN or TiCN coatings, withstanding the high thermal loads associated with high speed cutting applications.
| Cutter Diameter | 6mm |
| Plunge Type | Centre Cutting |
| Reach Type | Standard Neck |
| Cutter Diameter Tolerance | e8 |
| Shank Diameter Tolerance | H6 |
| Flute Length | 13mm |
| Length Type | Regular |
| Series | 95 |
| Number of Flutes | 4 |
| System of Measurement | Metric |
| Cutter Style | Square End |
| Shank Type | Weldon Flat |
| Flute Type | Helical |
| Shank Diameter | 6mm |
| Milling Cutter Type | End Mills |
| Material | Cobalt High Speed Steel |
| Material Application | Alloy Steel | Carbon Steel | Cast Iron | Copper | Stainless Steels |
| Standards Met | DIN 844 | DIN 1835B |
| Coolant Delivery | External |
| End Mill Type | End Mill |
| Milling Application | Finishing | Profiling | Semi-finishing | Slotting |
| Cutting Direction | Right Hand |
| Helix Direction | Right Hand |
| Helix Angle | 30\u00b0 |
| Material Grade | M35 |
| Overall Length | 57mm |
