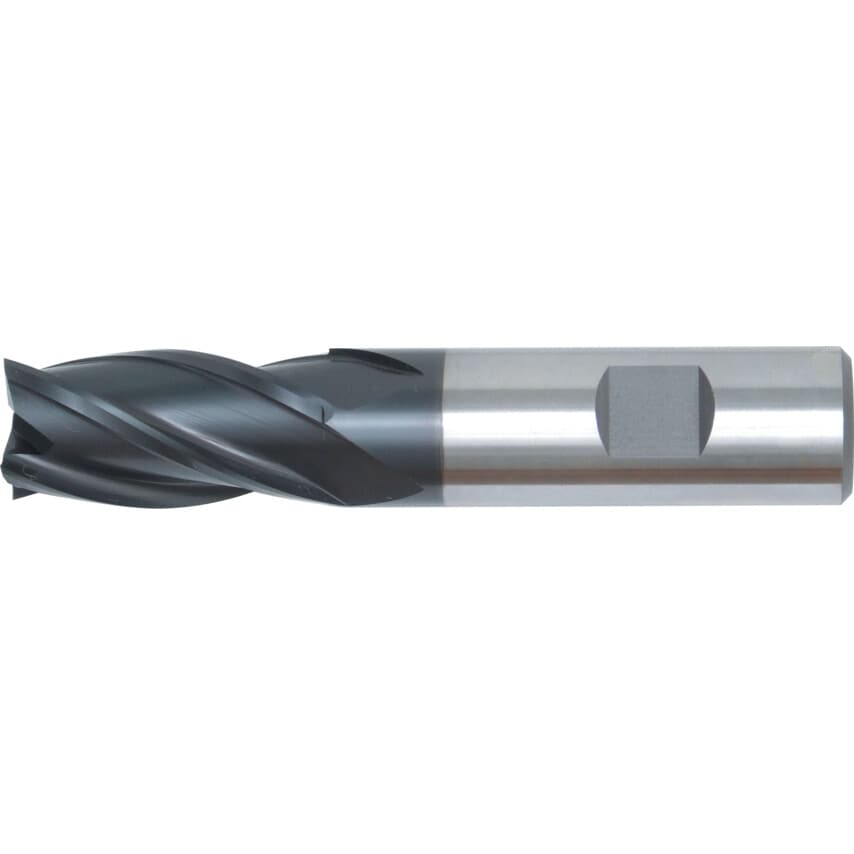

Series 95 - Regular
Centre cutting. Weldon shank to DIN 1835B. Shank diameter to h6. Dimensions to DIN 844.
The latest enhancement of the SwissTech range, these cutters deliver excellent performance when cutting difficult materials, even at high speeds.
Manufactured from premium PM (Powder Metallurgy) tool steel, with an excellent cutting geometry. Designed for strength and rigidity, minimising vibration in high speed cutting applications and providing improved productivity.
These cutters are further enhanced by the SwissTech Peak Power? coating, suiting dry cutting applications, having higher oxidization resistance and hot-hardness than conventional TiALN or TiCN coatings, withstanding the high thermal loads associated with high speed cutting applications.
| System of Measurement | Metric |
| Shank Diameter | 12mm |
| Milling Cutter Type | End Mills |
| Material Grade | M35 |
| Plunge Type | Centre Cutting |
| Series | 95 |
| Cutter Diameter Tolerance | e8 |
| Flute Length | 26mm |
| Material Application | Alloy Steel | Carbon Steel | Cast Iron | Copper | Stainless Steels |
| Milling Application | Finishing | Profiling | Semi-finishing | Slotting |
| End Mill Type | End Mill |
| Reach Type | Standard Neck |
| Shank Diameter Tolerance | H6 |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Shank Type | Weldon Flat |
| Standards Met | DIN 844 | DIN 1835B |
| Overall Length | 83mm |
| Cutter Diameter | 14mm |
| Material | Cobalt High Speed Steel |
| Helix Angle | 30\u00b0 |
| Length Type | Regular |
| Helix Direction | Right Hand |
| Number of Flutes | 4 |
| Cutter Style | Square End |
| Coolant Delivery | External |
