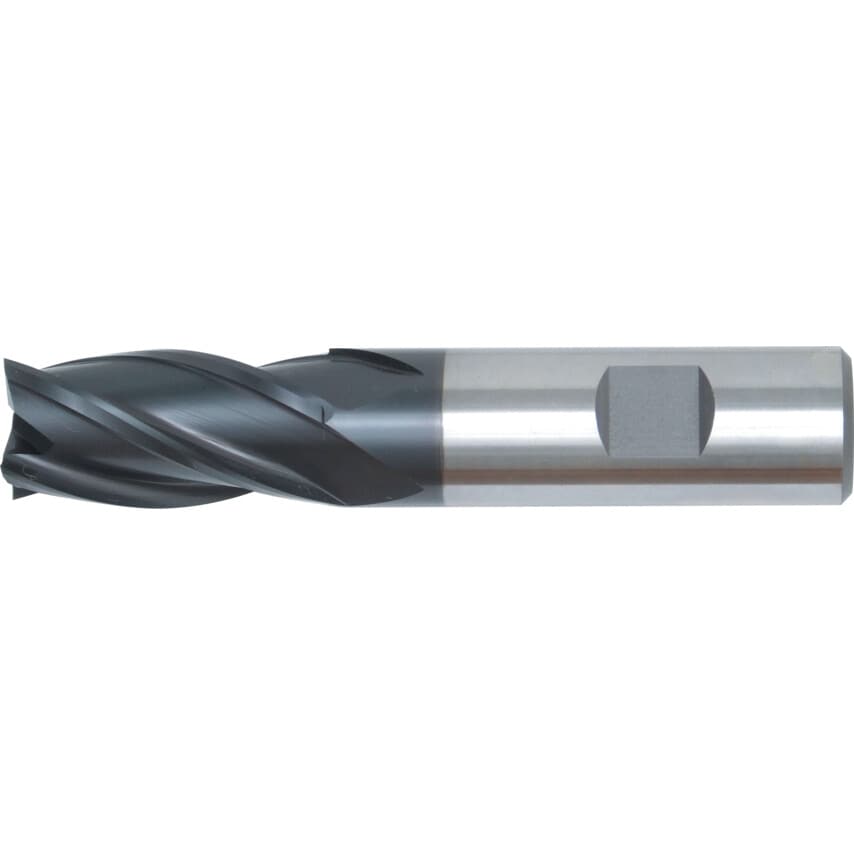

Series 95 - Regular
Centre cutting. Weldon shank to DIN 1835B. Shank diameter to h6. Dimensions to DIN 844.
The latest enhancement of the SwissTech range, these cutters deliver excellent performance when cutting difficult materials, even at high speeds.
Manufactured from premium PM (Powder Metallurgy) tool steel, with an excellent cutting geometry. Designed for strength and rigidity, minimising vibration in high speed cutting applications and providing improved productivity.
These cutters are further enhanced by the SwissTech Peak Power? coating, suiting dry cutting applications, having higher oxidization resistance and hot-hardness than conventional TiALN or TiCN coatings, withstanding the high thermal loads associated with high speed cutting applications.
| Material Grade | M35 |
| System of Measurement | Metric |
| Material Application | Alloy Steel | Carbon Steel | Cast Iron | Copper | Stainless Steels |
| Reach Type | Standard Neck |
| Length Type | Regular |
| Flute Length | 26mm |
| Shank Diameter Tolerance | H6 |
| Cutter Style | Square End |
| Flute Type | Helical |
| Milling Application | Finishing | Profiling | Semi-finishing | Slotting |
| Number of Flutes | 4 |
| Cutter Diameter | 12mm |
| Helix Direction | Right Hand |
| Cutter Diameter Tolerance | e8 |
| Shank Type | Weldon Flat |
| Overall Length | 83mm |
| End Mill Type | End Mill |
| Plunge Type | Centre Cutting |
| Material | Cobalt High Speed Steel |
| Coolant Delivery | External |
| Milling Cutter Type | End Mills |
| Cutting Direction | Right Hand |
| Series | 95 |
| Standards Met | DIN 844 | DIN 1835B |
| Shank Diameter | 12mm |
| Helix Angle | 30\u00b0 |
