Series 95 - Regular

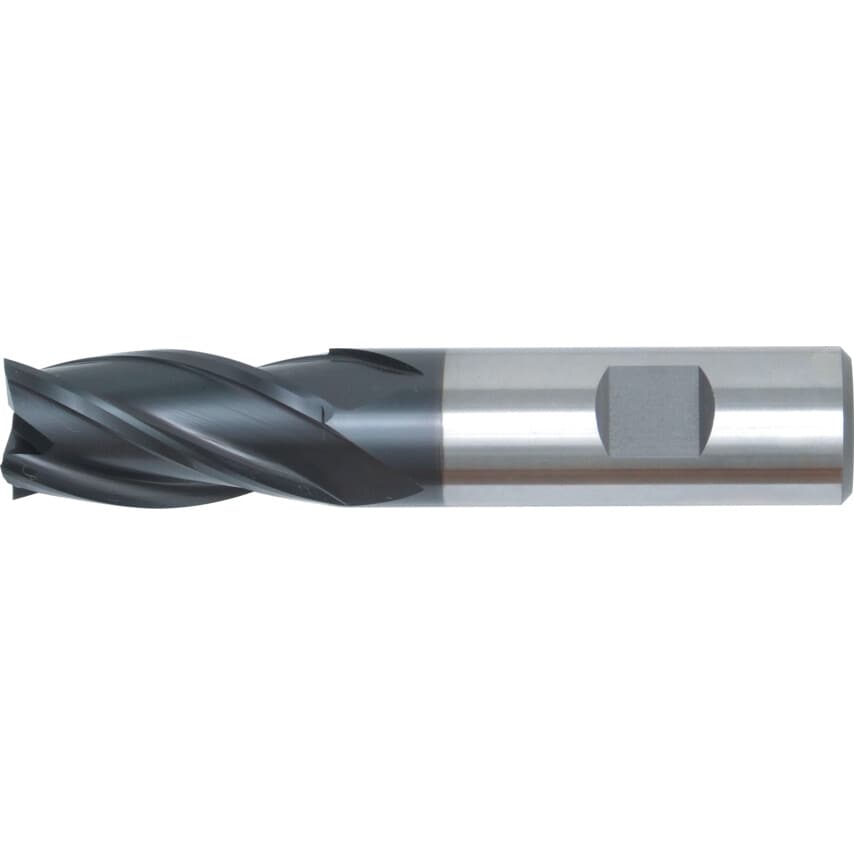

Centre cutting. Weldon shank to DIN 1835B. Shank diameter to h6. Dimensions to DIN 844.
The latest enhancement of the SwissTech range, these cutters deliver excellent performance when cutting difficult materials, even at high speeds.
Manufactured from premium PM (Powder Metallurgy) tool steel, with an excellent cutting geometry. Designed for strength and rigidity, minimising vibration in high speed cutting applications and providing improved productivity.
These cutters are further enhanced by the SwissTech Peak Power? coating, suiting dry cutting applications, having higher oxidization resistance and hot-hardness than conventional TiALN or TiCN coatings, withstanding the high thermal loads associated with high speed cutting applications.
| Flute Type | Helical |
| Material | Cobalt High Speed Steel |
| Coolant Delivery | External |
| Material Grade | M35 |
| Standards Met | DIN 844 | DIN 1835B |
| Cutter Diameter | 8mm |
| System of Measurement | Metric |
| Series | 95 |
| Plunge Type | Centre Cutting |
| Shank Diameter Tolerance | H6 |
| Cutter Style | Square End |
| Material Application | Alloy Steel | Carbon Steel | Cast Iron | Copper | Stainless Steels |
| Cutting Direction | Right Hand |
| Milling Cutter Type | End Mills |
| Shank Type | Weldon Flat |
| Cutter Diameter Tolerance | e8 |
| Length Type | Regular |
| Shank Diameter | 10mm |
| Flute Length | 19mm |
| Milling Application | Finishing | Profiling | Semi-finishing | Slotting |
| Overall Length | 69mm |
| Number of Flutes | 4 |
| Reach Type | Standard Neck |
| Helix Direction | Right Hand |
| Helix Angle | 30\u00b0 |
| End Mill Type | End Mill |
