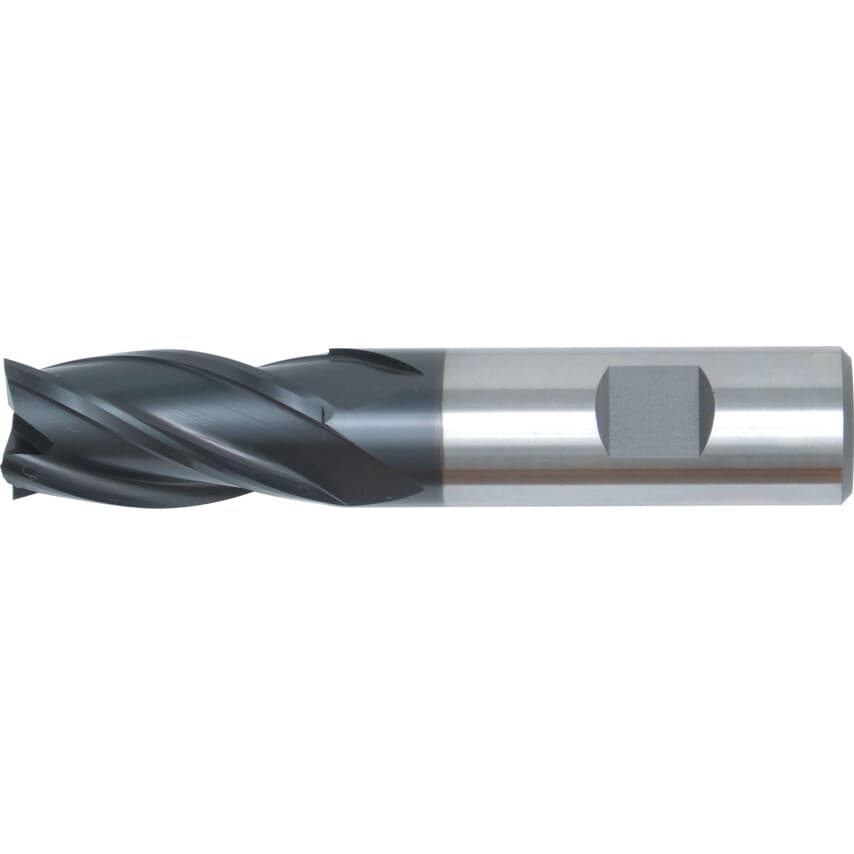

Series 95 - Regular
Centre cutting. Weldon shank to DIN 1835B. Shank diameter to h6. Dimensions to DIN 844.
The latest enhancement of the SwissTech range, these cutters deliver excellent performance when cutting difficult materials, even at high speeds.
Manufactured from premium PM (Powder Metallurgy) tool steel, with an excellent cutting geometry. Designed for strength and rigidity, minimising vibration in high speed cutting applications and providing improved productivity.
These cutters are further enhanced by the SwissTech Peak Power? coating, suiting dry cutting applications, having higher oxidization resistance and hot-hardness than conventional TiALN or TiCN coatings, withstanding the high thermal loads associated with high speed cutting applications.
| Reach Type | Standard Neck |
| Shank Diameter | 20mm |
| Shank Diameter Tolerance | H6 |
| System of Measurement | Metric |
| Cutter Diameter Tolerance | e8 |
| Cutting Direction | Right Hand |
| Shank Type | Weldon Flat |
| Material Application | Alloy Steel | Carbon Steel | Cast Iron | Copper | Stainless Steels |
| End Mill Type | End Mill |
| Length Type | Regular |
| Milling Cutter Type | End Mills |
| Series | 95 |
| Flute Type | Helical |
| Overall Length | 104mm |
| Material | Cobalt High Speed Steel |
| Number of Flutes | 4 |
| Milling Application | Finishing | Profiling | Semi-finishing | Slotting |
| Plunge Type | Centre Cutting |
| Flute Length | 38mm |
| Cutter Style | Square End |
| Coolant Delivery | External |
| Cutter Diameter | 20mm |
| Helix Angle | 30\u00b0 |
| Standards Met | DIN 844 | DIN 1835B |
| Helix Direction | Right Hand |
| Material Grade | M35 |
