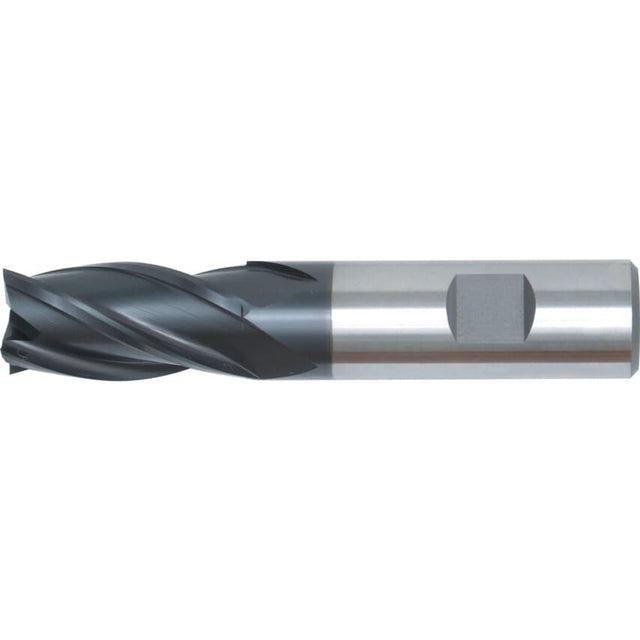

Series 95 - Regular
Centre cutting. Weldon shank to DIN 1835B. Shank diameter to h6. Dimensions to DIN 844.
The latest enhancement of the SwissTech range, these cutters deliver excellent performance when cutting difficult materials, even at high speeds.
Manufactured from premium PM (Powder Metallurgy) tool steel, with an excellent cutting geometry. Designed for strength and rigidity, minimising vibration in high speed cutting applications and providing improved productivity.
These cutters are further enhanced by the SwissTech Peak Power? coating, suiting dry cutting applications, having higher oxidization resistance and hot-hardness than conventional TiALN or TiCN coatings, withstanding the high thermal loads associated with high speed cutting applications.
| System of Measurement | Metric |
| Length Type | Regular |
| Flute Type | Helical |
| Flute Length | 8mm |
| Milling Application | Finishing | Profiling | Semi-finishing | Slotting |
| Material | Cobalt High Speed Steel |
| Plunge Type | Centre Cutting |
| Cutting Direction | Right Hand |
| Cutter Style | Square End |
| Material Grade | M35 |
| Helix Angle | 30\u00b0 |
| Shank Diameter Tolerance | H6 |
| Milling Cutter Type | End Mills |
| Cutter Diameter | 3mm |
| Shank Diameter | 6mm |
| Series | 95 |
| Reach Type | Standard Neck |
| Standards Met | DIN 844 | DIN 1835B |
| End Mill Type | End Mill |
| Helix Direction | Right Hand |
| Shank Type | Weldon Flat |
| Number of Flutes | 4 |
| Overall Length | 52mm |
| Cutter Diameter Tolerance | e8 |
| Coolant Delivery | External |
| Material Application | Alloy Steel | Carbon Steel | Cast Iron | Copper | Stainless Steels |
