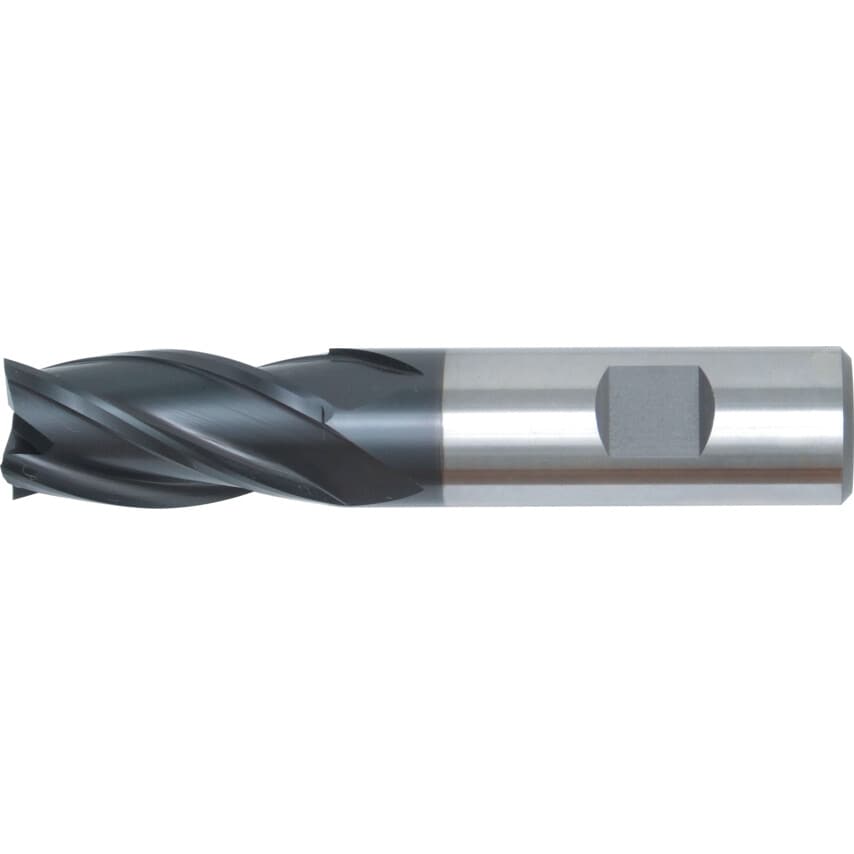

Series 95 - Regular
Centre cutting. Weldon shank to DIN 1835B. Shank diameter to h6. Dimensions to DIN 844.
The latest enhancement of the SwissTech range, these cutters deliver excellent performance when cutting difficult materials, even at high speeds.
Manufactured from premium PM (Powder Metallurgy) tool steel, with an excellent cutting geometry. Designed for strength and rigidity, minimising vibration in high speed cutting applications and providing improved productivity.
These cutters are further enhanced by the SwissTech Peak Power? coating, suiting dry cutting applications, having higher oxidization resistance and hot-hardness than conventional TiALN or TiCN coatings, withstanding the high thermal loads associated with high speed cutting applications.
| Cutter Style | Square End |
| Shank Diameter Tolerance | H6 |
| Shank Type | Weldon Flat |
| Material | Cobalt High Speed Steel |
| Length Type | Regular |
| System of Measurement | Metric |
| Reach Type | Standard Neck |
| Milling Application | Finishing | Profiling | Semi-finishing | Slotting |
| Helix Direction | Right Hand |
| Material Grade | M35 |
| Coolant Delivery | External |
| Cutter Diameter | 16mm |
| Cutter Diameter Tolerance | e8 |
| Number of Flutes | 4 |
| Plunge Type | Centre Cutting |
| Milling Cutter Type | End Mills |
| Helix Angle | 30\u00b0 |
| Material Application | Alloy Steel | Carbon Steel | Cast Iron | Copper | Stainless Steels |
| Shank Diameter | 16mm |
| Flute Length | 32mm |
| Overall Length | 92mm |
| End Mill Type | End Mill |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Standards Met | DIN 844 | DIN 1835B |
| Series | 95 |
