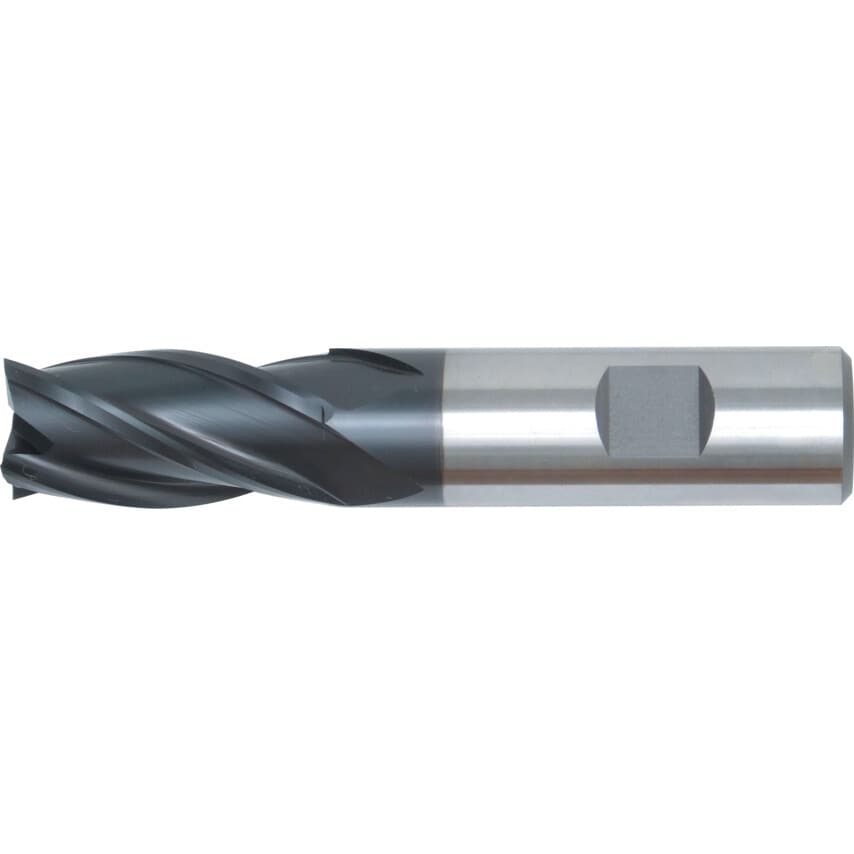

Series 95 - Regular
Centre cutting. Weldon shank to DIN 1835B. Shank diameter to h6. Dimensions to DIN 844.
The latest enhancement of the SwissTech range, these cutters deliver excellent performance when cutting difficult materials, even at high speeds.
Manufactured from premium PM (Powder Metallurgy) tool steel, with an excellent cutting geometry. Designed for strength and rigidity, minimising vibration in high speed cutting applications and providing improved productivity.
These cutters are further enhanced by the SwissTech Peak Power? coating, suiting dry cutting applications, having higher oxidization resistance and hot-hardness than conventional TiALN or TiCN coatings, withstanding the high thermal loads associated with high speed cutting applications.
| Material | Cobalt High Speed Steel |
| Shank Diameter | 6mm |
| Material Grade | M35 |
| Milling Cutter Type | End Mills |
| Reach Type | Standard Neck |
| Helix Direction | Right Hand |
| Length Type | Regular |
| Plunge Type | Centre Cutting |
| Flute Type | Helical |
| End Mill Type | End Mill |
| Cutter Diameter Tolerance | e8 |
| Milling Application | Finishing | Profiling | Semi-finishing | Slotting |
| Shank Type | Weldon Flat |
| Cutting Direction | Right Hand |
| Cutter Style | Square End |
| Helix Angle | 30\u00b0 |
| Shank Diameter Tolerance | H6 |
| Coolant Delivery | External |
| Flute Length | 11mm |
| Cutter Diameter | 4mm |
| System of Measurement | Metric |
| Series | 95 |
| Overall Length | 55mm |
| Material Application | Alloy Steel | Carbon Steel | Cast Iron | Copper | Stainless Steels |
| Number of Flutes | 4 |
| Standards Met | DIN 844 | DIN 1835B |
