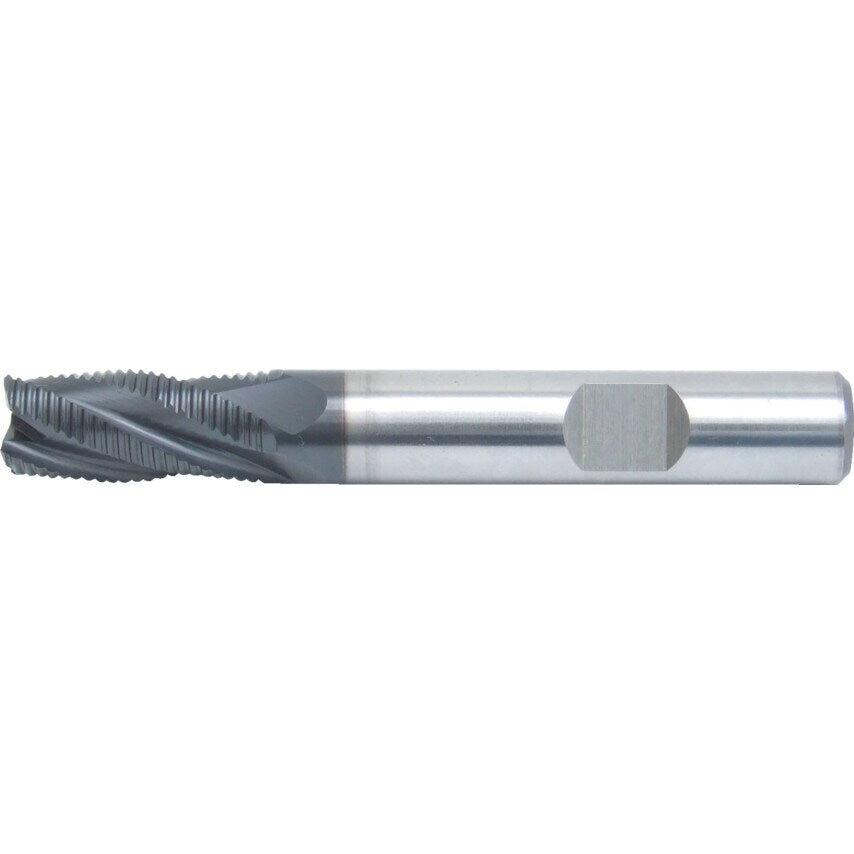

Series 94 - Regular
Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to js12. Shank diameter to h6. Dimensions to DIN 844.
The latest enhancement of the SwissTech range, these cutters deliver excellent performance when cutting difficult materials, even at high speeds.
Manufactured from premium PM (Powder Metallurgy) tool steel, with an excellent cutting geometry. Designed for strength and rigidity, minimising vibration in high speed cutting applications and providing improved productivity.
These cutters are further enhanced by the SwissTech Peak Power? coating, suiting dry cutting applications, having higher oxidization resistance and hot-hardness than conventional TiALN or TiCN coatings, withstanding the high thermal loads associated with high speed cutting applications.
| Cutter Style | Roughing |
| Plunge Type | Centre Cutting |
| Cutter Diameter | 8.0mm |
| Cutting Direction | Right Hand |
| Milling Cutter Type | End Mills |
| System of Measurement | Metric |
| Material | Cobalt High Speed Steel |
| Cutter Diameter Tolerance | js12 |
| Overall Length | 69.0mm |
| Standards Met | DIN 844 | DIN 1835B |
| Series | 94 |
| Shank Diameter Tolerance | H6 |
| Material Grade | M42 |
| Number of Flutes | 3 |
| Length Type | Regular |
| Shank Diameter | 10.0mm |
| Flute Length | 19.0mm |
| Product Type | F/P Ripper |
| Shank Type | Weldon Flat |
| Coolant Delivery | External |
| Flute Type | Roughing |
| Finish/Coating | Peak Power |
