Series 94 - Regular

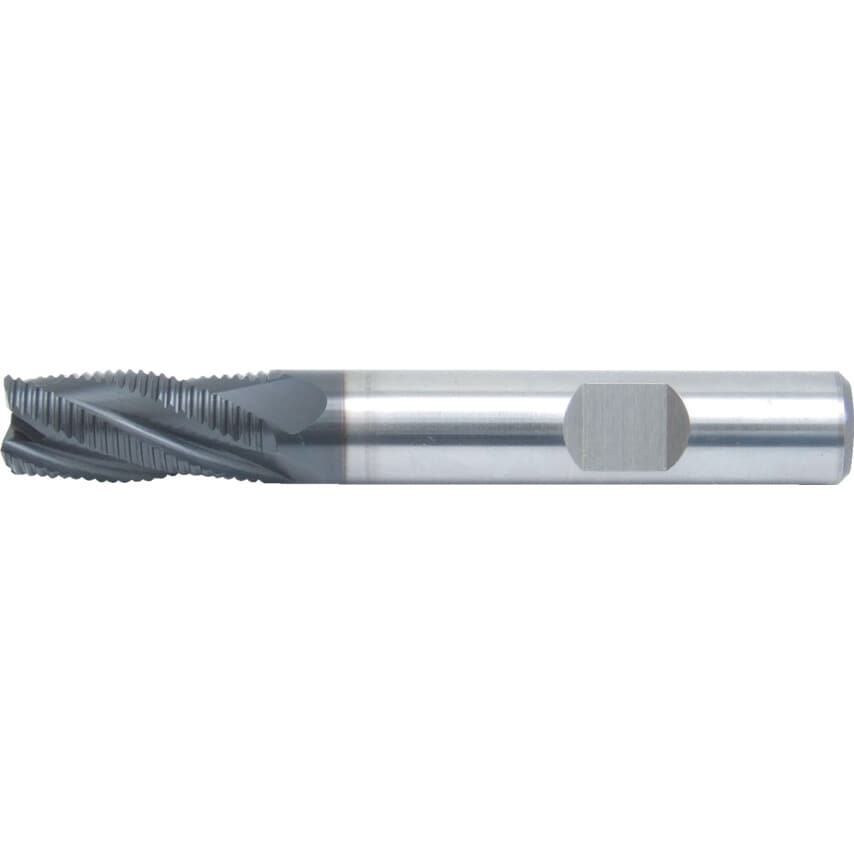

Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to js12. Shank diameter to h6. Dimensions to DIN 844.
The latest enhancement of the SwissTech range, these cutters deliver excellent performance when cutting difficult materials, even at high speeds.
Manufactured from premium PM (Powder Metallurgy) tool steel, with an excellent cutting geometry. Designed for strength and rigidity, minimising vibration in high speed cutting applications and providing improved productivity.
These cutters are further enhanced by the SwissTech Peak Power? coating, suiting dry cutting applications, having higher oxidization resistance and hot-hardness than conventional TiALN or TiCN coatings, withstanding the high thermal loads associated with high speed cutting applications.
| Milling Cutter Type | End Mills |
| Cutter Diameter | 16.0mm |
| Material | Cobalt High Speed Steel |
| Number of Flutes | 4 |
| Shank Diameter | 16.0mm |
| Cutter Diameter Tolerance | js12 |
| Length Type | Regular |
| Cutting Direction | Right Hand |
| Finish/Coating | Peak Power |
| Flute Length | 32.0mm |
| System of Measurement | Metric |
| Product Type | Ripper |
| Coolant Delivery | External |
| Shank Type | Weldon Flat |
| Flute Type | Roughing |
| Series | 94 |
| Plunge Type | Centre Cutting |
| Shank Diameter Tolerance | H6 |
| Standards Met | DIN 844 | DIN 1835B |
| Cutter Style | Roughing |
| Material Grade | M42 |
| Overall Length | 94.0mm |
