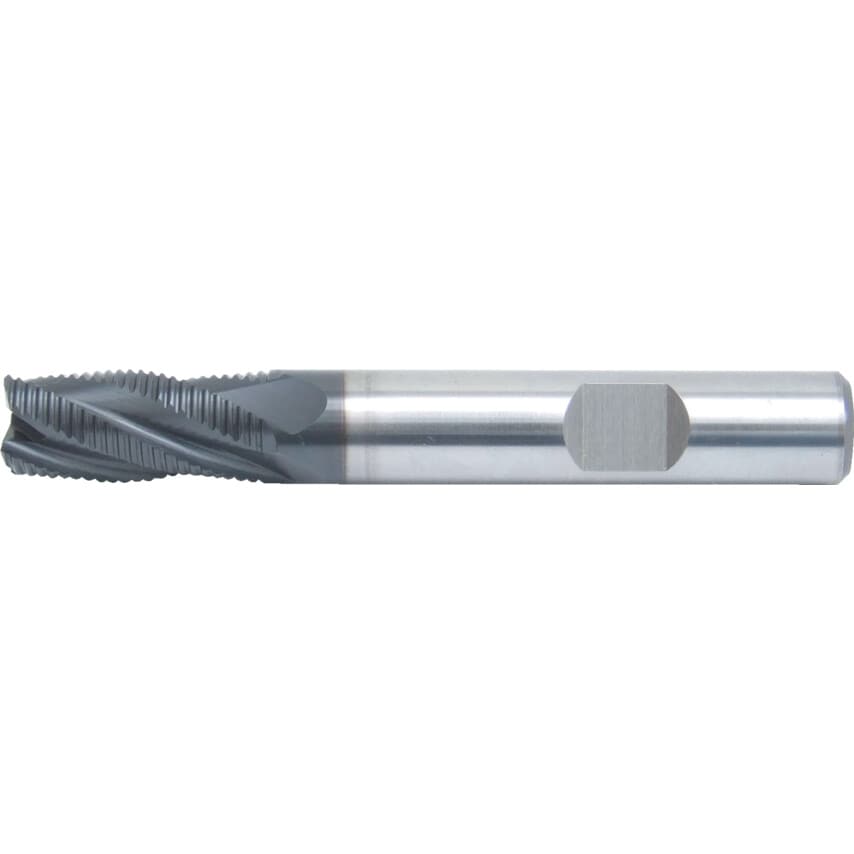

Series 94 - Regular
Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to js12. Shank diameter to h6. Dimensions to DIN 844.
The latest enhancement of the SwissTech range, these cutters deliver excellent performance when cutting difficult materials, even at high speeds.
Manufactured from premium PM (Powder Metallurgy) tool steel, with an excellent cutting geometry. Designed for strength and rigidity, minimising vibration in high speed cutting applications and providing improved productivity.
These cutters are further enhanced by the SwissTech Peak Power? coating, suiting dry cutting applications, having higher oxidization resistance and hot-hardness than conventional TiALN or TiCN coatings, withstanding the high thermal loads associated with high speed cutting applications.
| Shank Type | Weldon Flat |
| Cutting Direction | Right Hand |
| Overall Length | 121.0mm |
| Milling Cutter Type | End Mills |
| Cutter Diameter Tolerance | js12 |
| Flute Length | 45.0mm |
| System of Measurement | Metric |
| Length Type | Regular |
| Material | Cobalt High Speed Steel |
| Material Grade | M42 |
| Number of Flutes | 5 |
| Shank Diameter Tolerance | H6 |
| Cutter Diameter | 25.0mm |
| Coolant Delivery | External |
| Flute Type | Roughing |
| Standards Met | DIN 844 | DIN 1835B |
| Cutter Style | Roughing |
| Plunge Type | Centre Cutting |
| Series | 94 |
| Shank Diameter | 25.0mm |
| Finish/Coating | Peak Power |
