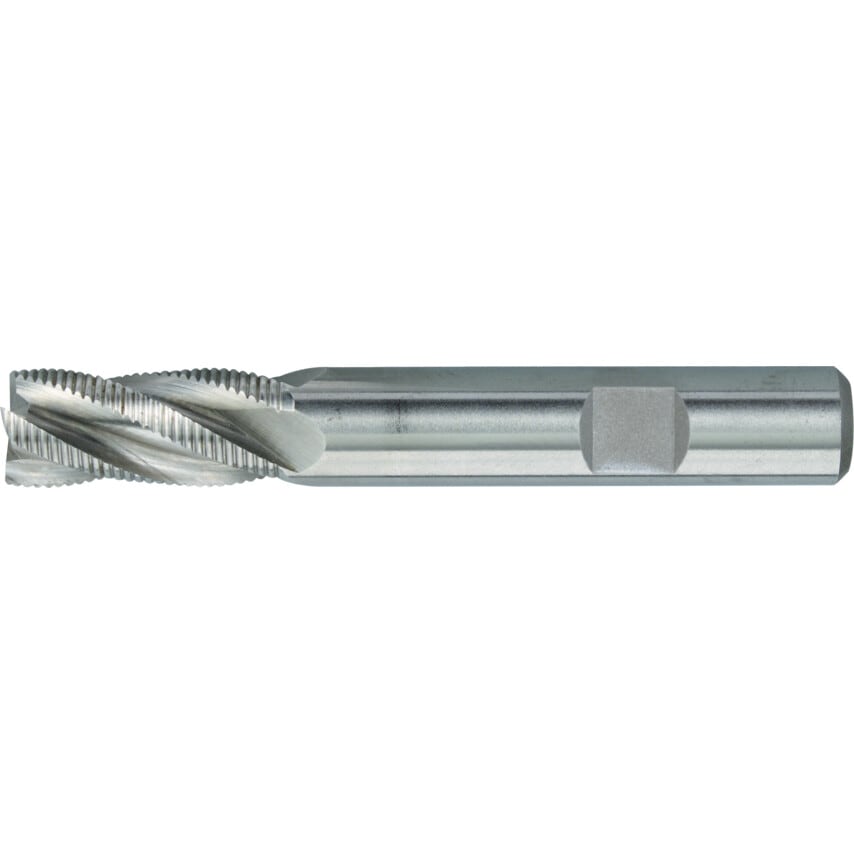

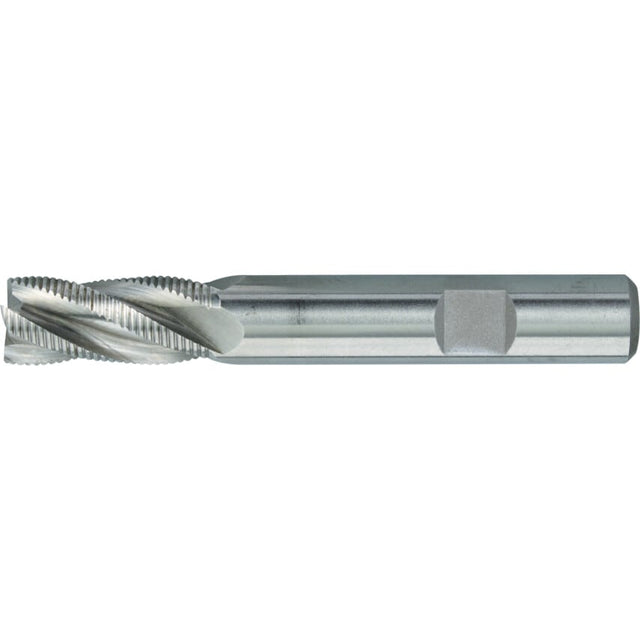

Series 25 - Regular Series
Dimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to js12. Shank diameter to h6.
Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| System of Measurement | Metric |
| Material | Cobalt High Speed Steel |
| Finish/Coating | Uncoated |
| Overall Length | 72.0mm |
| Flute Type | Roughing |
| Plunge Type | Centre Cutting |
| Cutter Style | Roughing |
| Coolant Delivery | External |
| Cutter Diameter | 10.0mm |
| Series | 25 |
| Milling Cutter Type | End Mills |
| Standards Met | DIN 844 | DIN 1835B |
| Flute Length | 22.0mm |
| Shank Diameter Tolerance | H6 |
| Material Grade | M42 |
| Number of Flutes | 4 |
| Length Type | Regular |
| Shank Diameter | 10.0mm |
| Shank Type | Weldon Flat |
| Cutting Direction | Right Hand |
| Cutter Diameter Tolerance | js12 |
