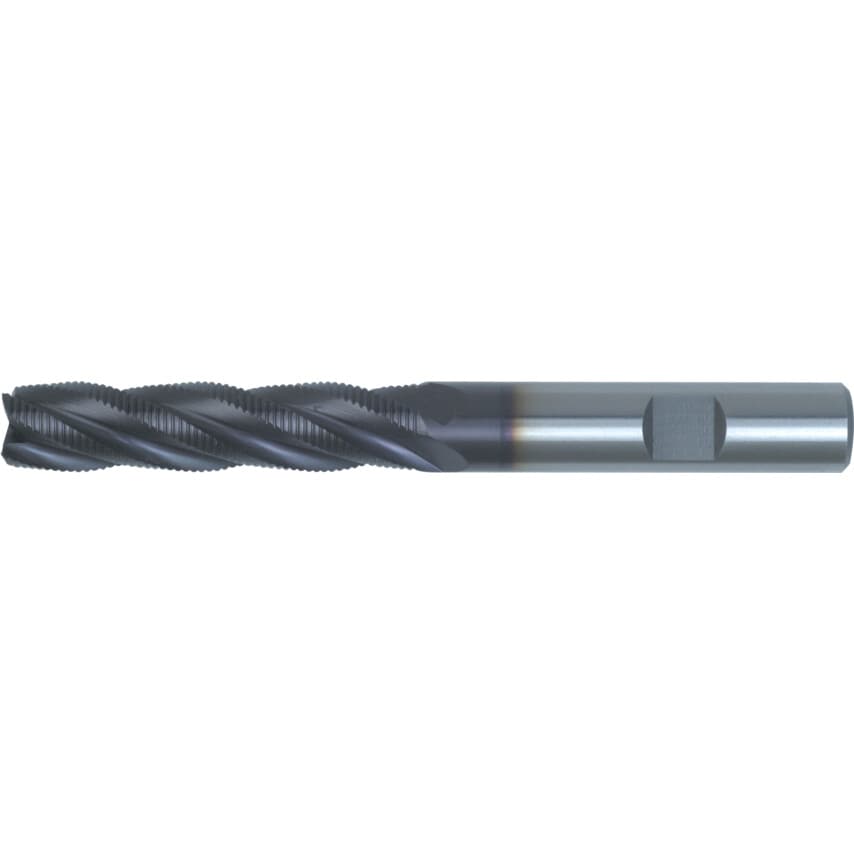

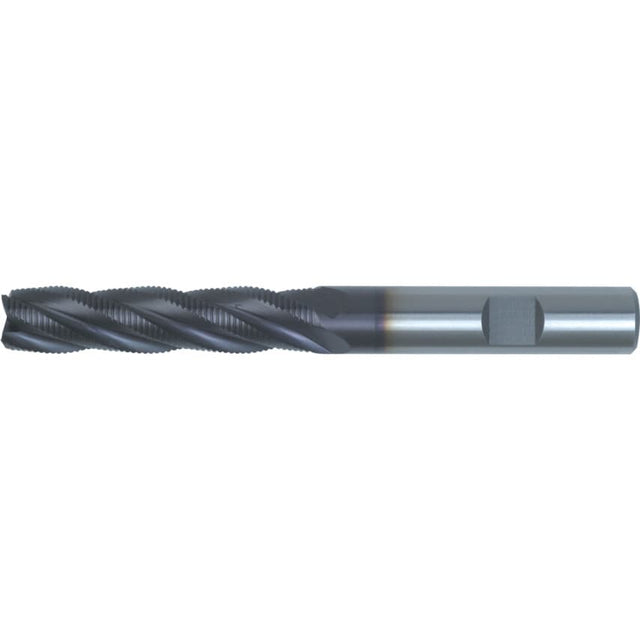

Series 96 - Long Series
Dimensions to DIN 844. Centre cutting. Shank to DIN 1835B. Cutting diameter to js12. Shank diameter to h6.
The combination of HSS-E PM and TiALN provides a cutter that is ideally suited to dry and semi-dry machining of materials up to 45 HRC, stainless steels and Aerospace alloys.
| Coolant Delivery | External |
| Cutter Diameter | 10.0mm |
| Cutter Diameter Tolerance | js12 |
| Shank Diameter | 10.0mm |
| Plunge Type | Centre Cutting |
| Material Grade | M42 |
| Number of Flutes | 5 |
| Cutter Style | Ripper |
| Flute Length | 45.0mm |
| Series | 96 |
| Standards Met | DIN 844 | DIN 1835B |
| Milling Cutter Type | End Mills |
| Shank Diameter Tolerance | H6 |
| Flute Type | Ripper |
| Cutting Direction | Right Hand |
| Overall Length | 95.0mm |
| Helix Direction | Right Hand |
| Shank Type | Weldon Flat |
| MFR Part No. | EP720906 |
| Pitch | Fine |
| Material | Cobalt High Speed Steel |
| Finish/Coating | TiAlN |
| System of Measurement | Metric |
| Milling Application | High-feed Milling | Roughing |
| Length Type | Long |
