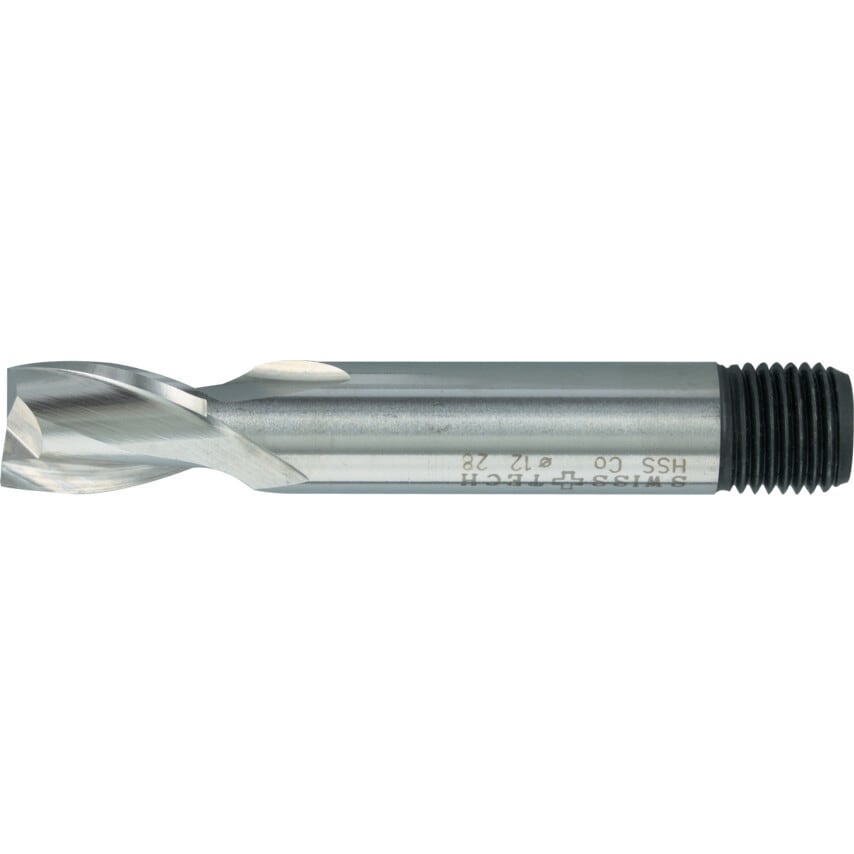

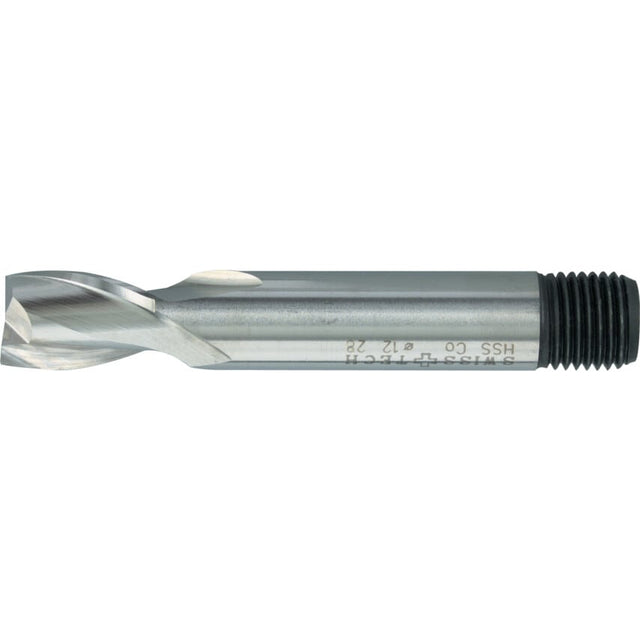

Series 28 - Short Series
Dimensions to DIN 327. Centre cutting. Threaded shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Material Grade | M42 |
| Shank Diameter | 20mm |
| Cutter Diameter | 20mm |
| Standards Met | DIN 327 |
| Shank Type | Threaded |
| Material | Cobalt High Speed Steel |
| Finish/Coating | Uncoated |
| System of Measurement | Metric |
| Number of Flutes | 2 |
| Flute Type | Helical |
| Product Type | Slot Drills |
| Overall Length | 88.0mm |
| End Mill Type | Slot Drill |
| Cutter Style | Square End |
| Milling Cutter Type | Slot Drill |
| Coolant Delivery | External |
| Flute Length | 22mm |
| Length Type | Short |
