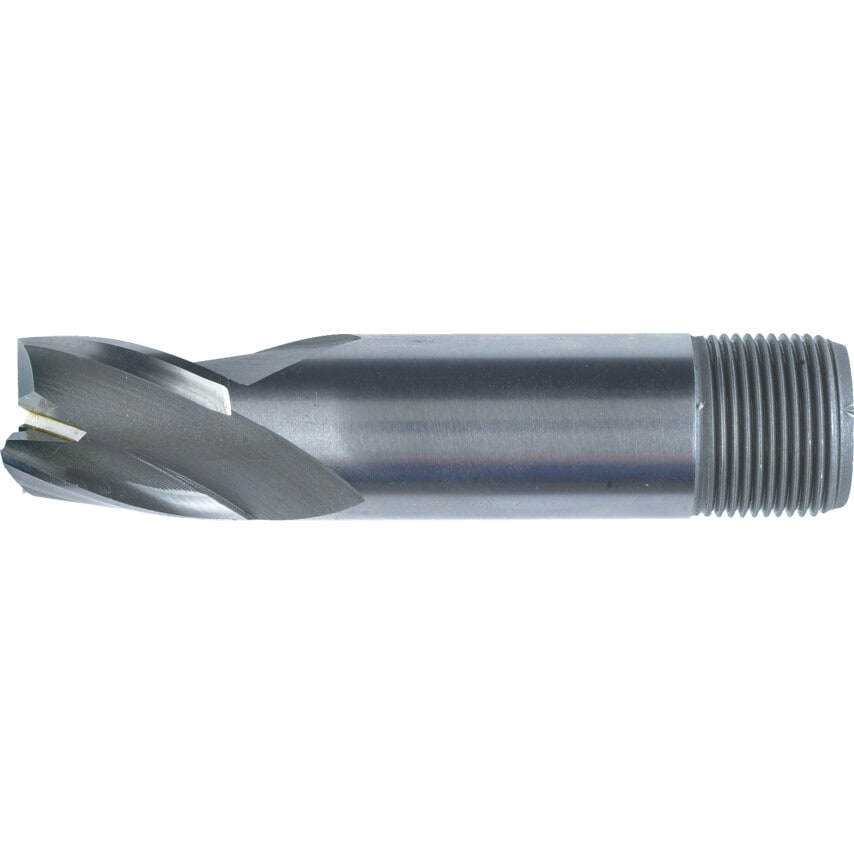

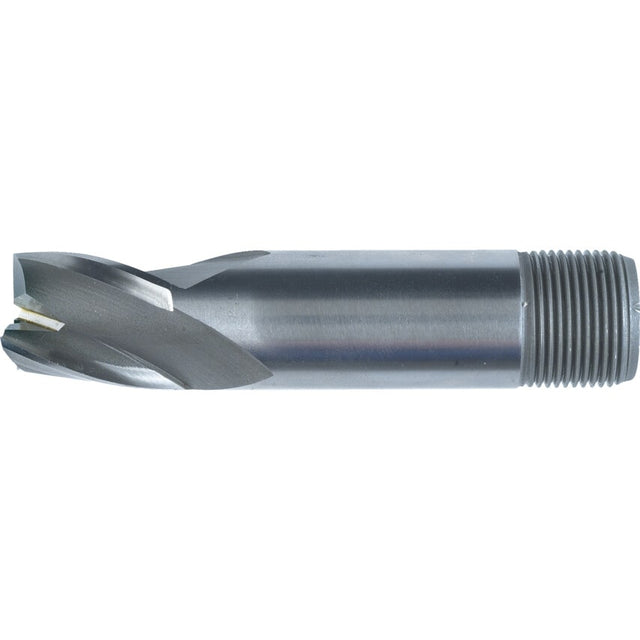

Series 32 - Short Series
Dimensions to DIN 327. Centre cutting. Threaded shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) and TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Overall Length | 92.0mm |
| Shank Diameter Tolerance | H6 |
| Finish/Coating | Uncoated |
| Product Type | Slot Drills |
| Flute Length | 32.0mm |
| Cutter Diameter | 16.0mm |
| Material | Cobalt High Speed Steel |
| Shank Type | Threaded |
| Milling Cutter Type | Slot Drill |
| Cutter Style | Square End |
| Cutting Direction | Right Hand |
| Standards Met | DIN 327 | DIN 1835D |
| System of Measurement | Metric |
| Plunge Type | Centre Cutting |
| End Mill Type | Slot Drill |
| Coolant Delivery | External |
| Cutter Diameter Tolerance | e8 |
| Number of Flutes | 3 |
| Length Type | Short |
| Flute Type | Helical |
| Shank Diameter | 16.0mm |
| Material Grade | M42 |
| Series | 32 |
