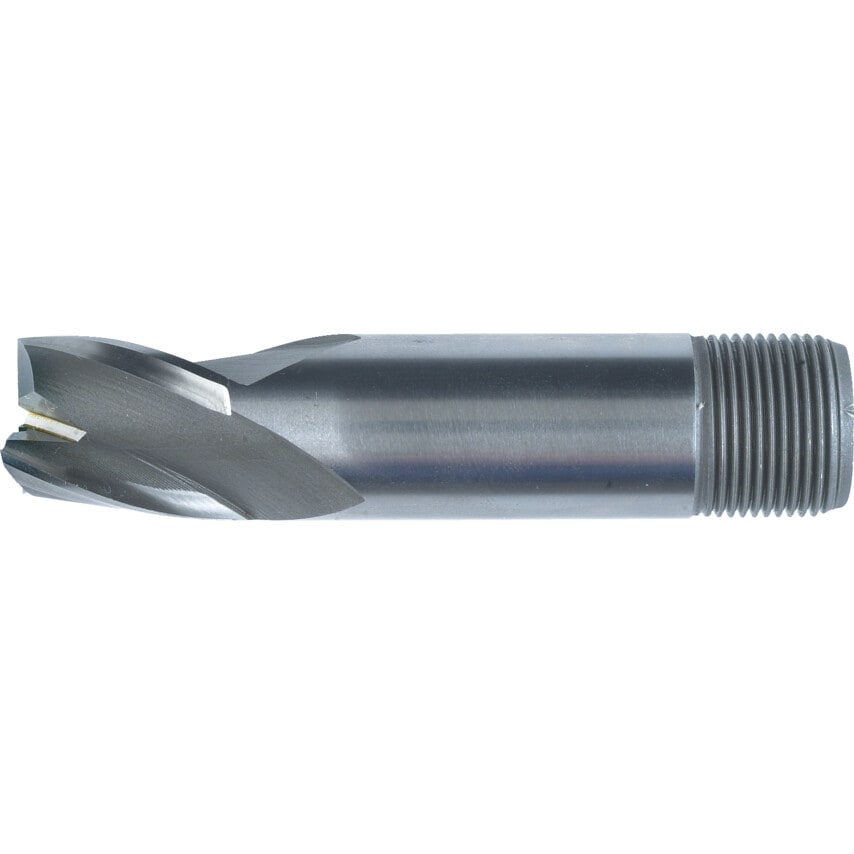

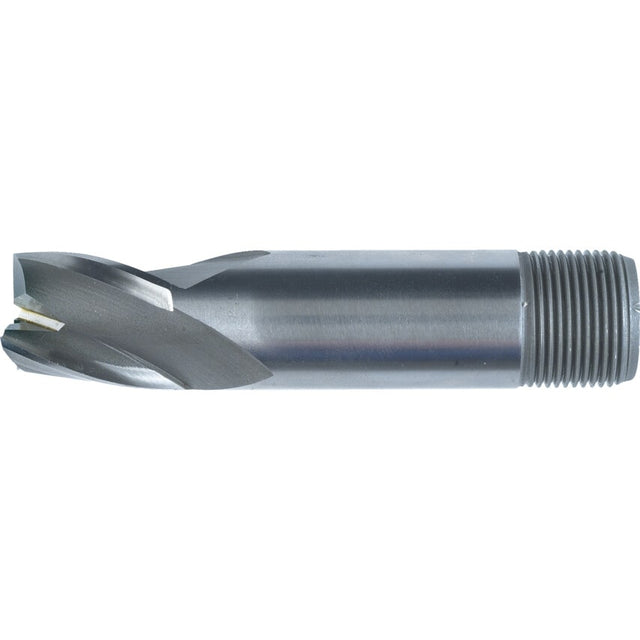

Series 32 - Short Series
Dimensions to DIN 327. Centre cutting. Threaded shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) and TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Overall Length | 83.0mm |
| System of Measurement | Metric |
| Number of Flutes | 3 |
| Product Type | Slot Drills |
| Shank Diameter | 12.0mm |
| Shank Diameter Tolerance | H6 |
| Cutter Diameter Tolerance | e8 |
| Cutting Direction | Right Hand |
| Flute Length | 26.0mm |
| Length Type | Short |
| Standards Met | DIN 327 | DIN 1835D |
| Finish/Coating | Uncoated |
| Milling Cutter Type | Slot Drill |
| Shank Type | Threaded |
| Plunge Type | Centre Cutting |
| Material Grade | M42 |
| Coolant Delivery | External |
| Material | Cobalt High Speed Steel |
| Cutter Diameter | 12.0mm |
| Flute Type | Helical |
| Cutter Style | Square End |
| Series | 32 |
| End Mill Type | Slot Drill |
