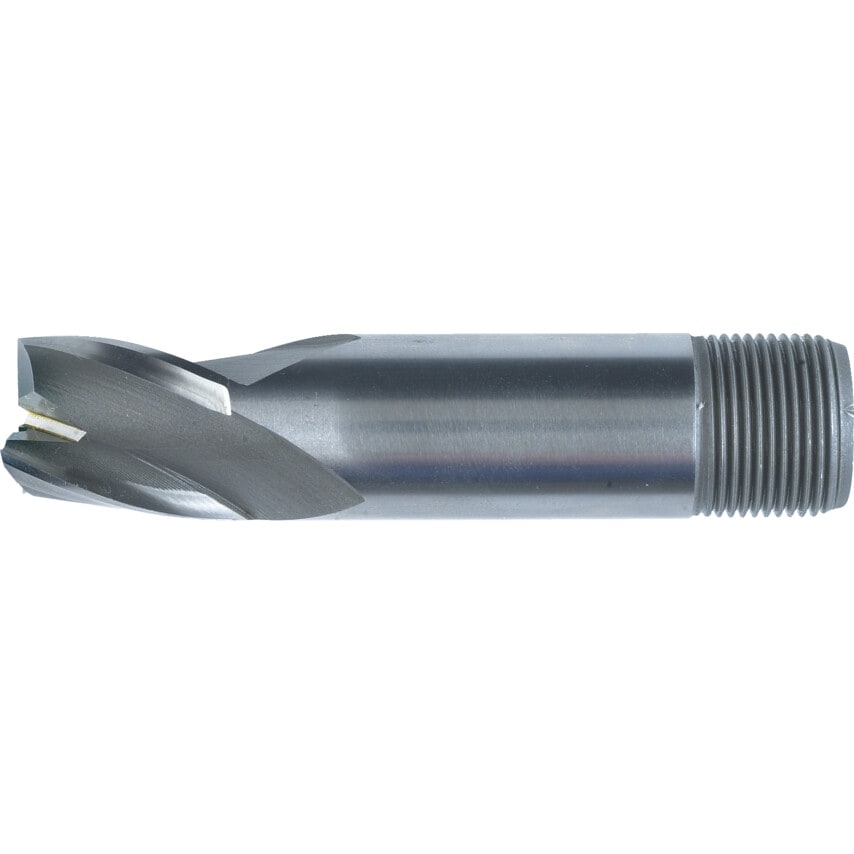

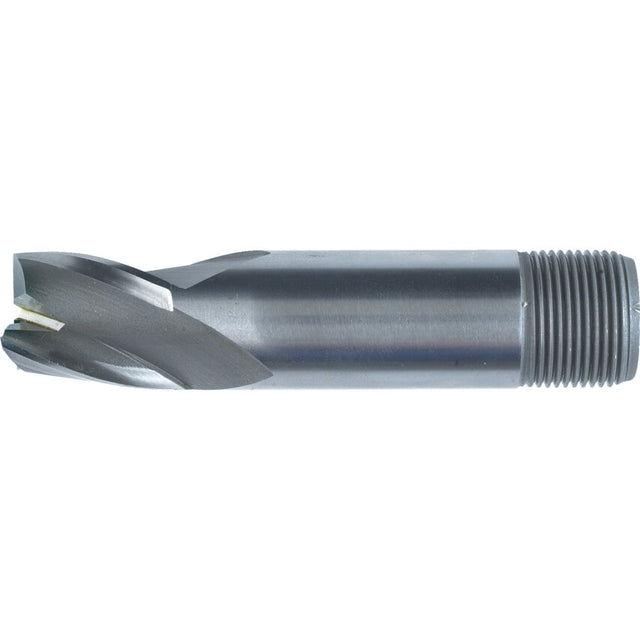

Series 32 - Short Series
Dimensions to DIN 327. Centre cutting. Threaded shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish) and TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Coolant Delivery | External |
| Cutting Direction | Right Hand |
| Cutter Diameter Tolerance | e8 |
| Shank Diameter | 10.0mm |
| Length Type | Short |
| Number of Flutes | 3 |
| Series | 32 |
| Overall Length | 69.0mm |
| Standards Met | DIN 327 | DIN 1835D |
| Material | Cobalt High Speed Steel |
| Flute Type | Helical |
| Milling Cutter Type | Slot Drill |
| Flute Length | 19.0mm |
| Finish/Coating | Uncoated |
| Cutter Diameter | 8.0mm |
| Material Grade | M42 |
| End Mill Type | Slot Drill |
| System of Measurement | Metric |
| Product Type | Short Series Slot Drills |
| Plunge Type | Centre Cutting |
| Shank Type | Threaded |
| Shank Diameter Tolerance | H6 |
| Cutter Style | Square End |
