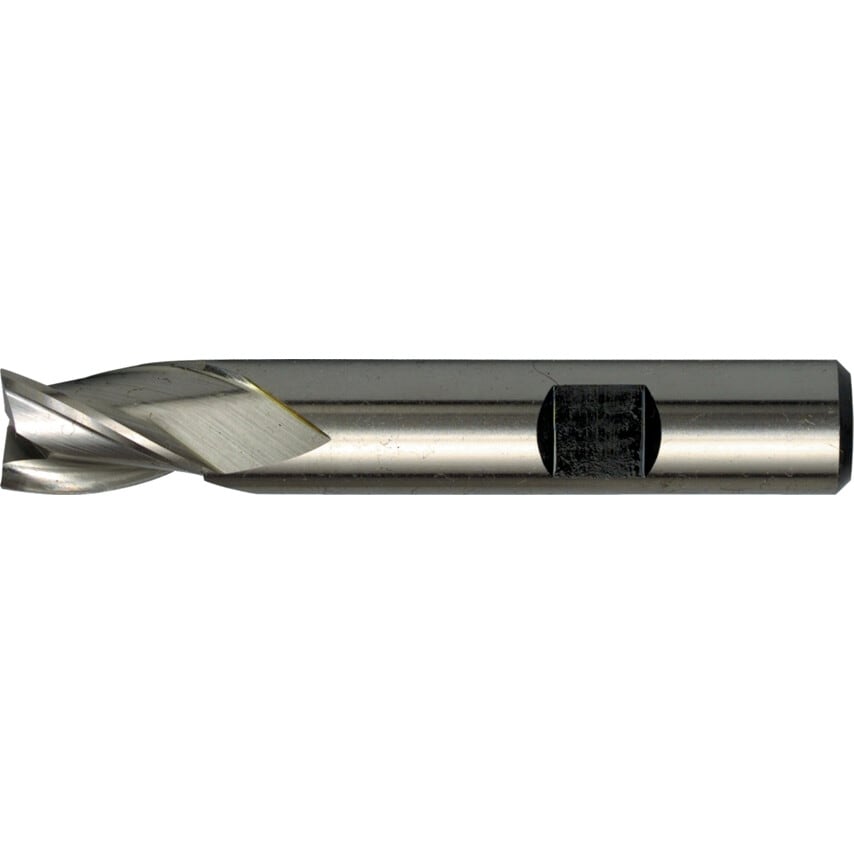

Series 05 - Short Series
Dimensions to DIN 327. Centre cutting. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Cutter Style | Square End |
| Coolant Delivery | External |
| Milling Cutter Type | Slot Drill |
| Overall Length | 73.0mm |
| Flute Type | Helical |
| Finish/Coating | Uncoated |
| Cutting Direction | Right Hand |
| Shank Diameter Tolerance | H6 |
| System of Measurement | Metric |
| Cutter Diameter | 12mm |
| Flute Length | 16mm |
| Cutter Diameter Tolerance | e8 |
| Material Grade | M42 |
| Shank Diameter | 12mm |
| End Mill Type | Slot Drill |
| Length Type | Short |
| Product Type | Slot Drills |
| Standards Met | DIN 327 | DIN 1835B |
| Material | Cobalt High Speed Steel |
| Shank Type | Weldon Flat |
| Plunge Type | Centre Cutting |
| Series | 5 |
| Number of Flutes | 3 |
