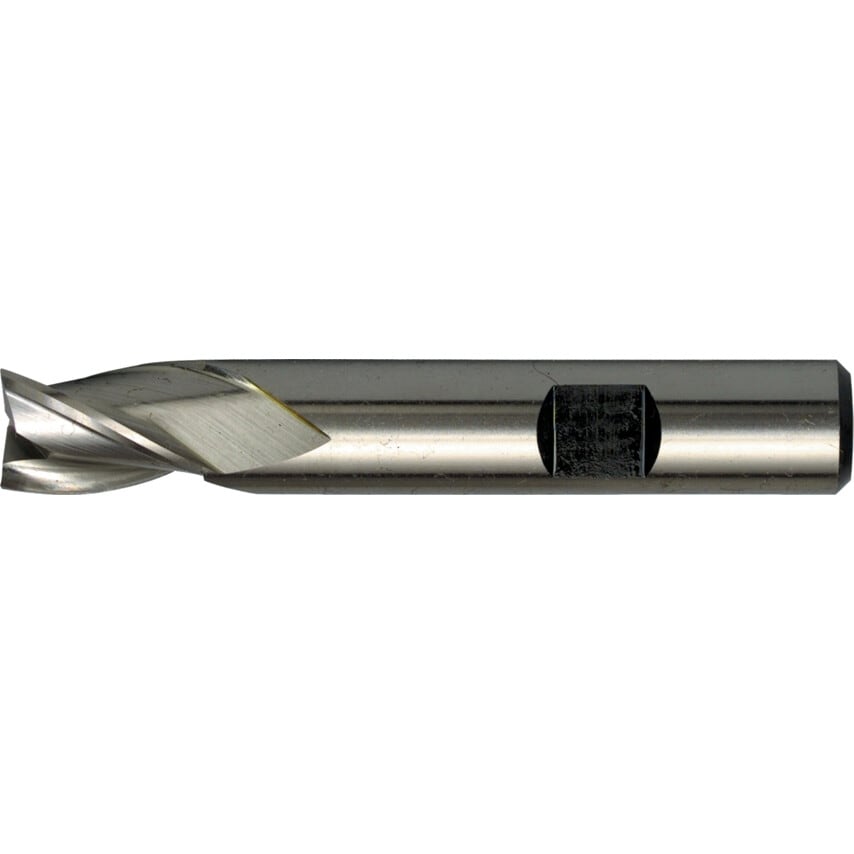

Series 05 - Short Series
Dimensions to DIN 327. Centre cutting. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Product Type | Slot Drills |
| End Mill Type | Slot Drill |
| Plunge Type | Centre Cutting |
| Material | Cobalt High Speed Steel |
| Shank Diameter Tolerance | H6 |
| Length Type | Short |
| Flute Type | Helical |
| Material Grade | M42 |
| Cutter Style | Square End |
| Finish/Coating | Uncoated |
| Cutter Diameter Tolerance | e8 |
| Overall Length | 102.0mm |
| Number of Flutes | 3 |
| Milling Cutter Type | Slot Drill |
| Shank Type | Weldon Flat |
| Flute Length | 26.0mm |
| Shank Diameter | 25.0mm |
| Coolant Delivery | External |
| Series | 05 |
| System of Measurement | Metric |
| Standards Met | DIN 327 | DIN 1835B |
| Cutting Direction | Right Hand |
| Cutter Diameter | 25.0mm |
