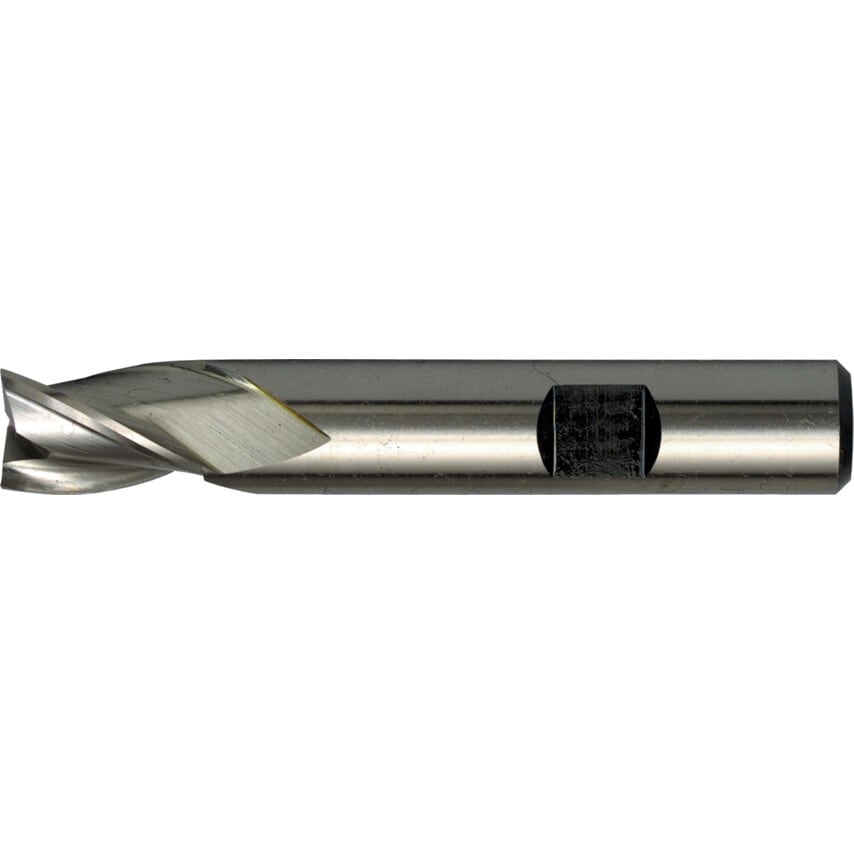

Series 05 - Short Series
Dimensions to DIN 327. Centre cutting. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Length Type | Short |
| Flute Type | Helical |
| Flute Length | 13mm |
| Material Grade | M42 |
| Shank Diameter Tolerance | H6 |
| Finish/Coating | Uncoated |
| Plunge Type | Centre Cutting |
| Overall Length | 63.0mm |
| End Mill Type | Slot Drill |
| Series | 5 |
| Shank Diameter | 10mm |
| Cutter Style | Square End |
| Cutter Diameter Tolerance | e8 |
| Standards Met | DIN 327 | DIN 1835B |
| Milling Cutter Type | Slot Drill |
| Product Type | Slot Drills |
| Cutting Direction | Right Hand |
| Shank Type | Weldon Flat |
| System of Measurement | Metric |
| Cutter Diameter | 10mm |
| Material | Cobalt High Speed Steel |
| Number of Flutes | 3 |
| Coolant Delivery | External |
