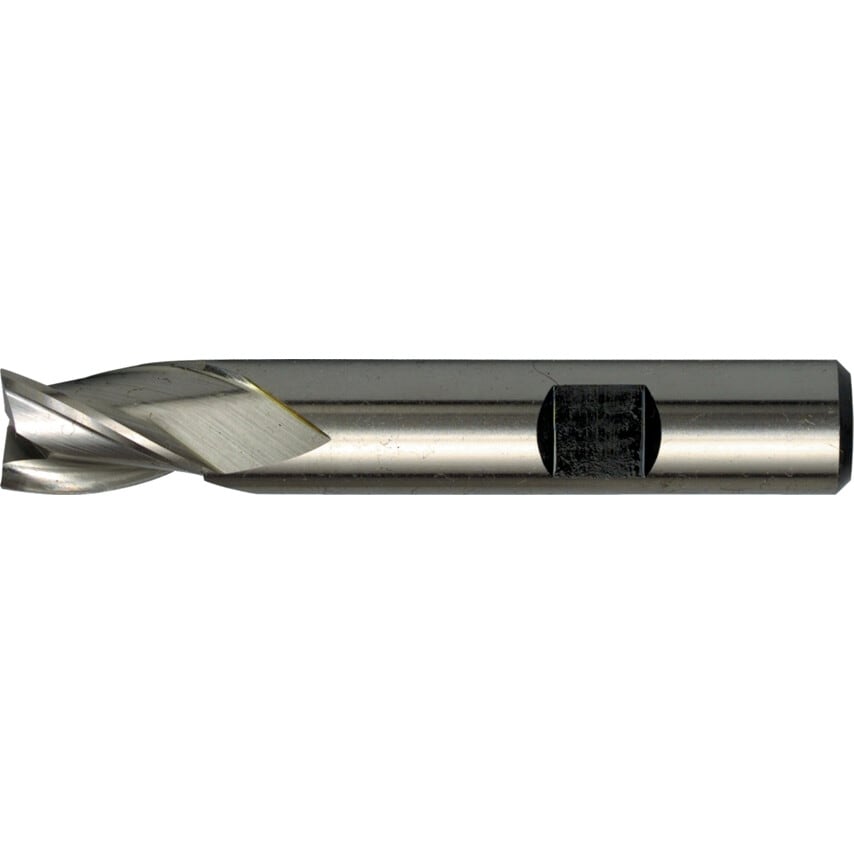

Series 05 - Short Series
Dimensions to DIN 327. Centre cutting. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Material Grade | M42 |
| Finish/Coating | Uncoated |
| Series | 05 |
| Cutter Style | Square End |
| Shank Type | Weldon Flat |
| Cutting Direction | Right Hand |
| Shank Diameter Tolerance | H6 |
| System of Measurement | Metric |
| Shank Diameter | 6.0mm |
| Material | Cobalt High Speed Steel |
| Cutter Diameter Tolerance | e8 |
| Length Type | Short |
| Cutter Diameter | 3.0mm |
| Milling Cutter Type | Slot Drill |
| Overall Length | 49.0mm |
| End Mill Type | Slot Drill |
| Number of Flutes | 3 |
| Plunge Type | Centre Cutting |
| Product Type | Short Series Slot Drills |
| Flute Type | Helical |
| Flute Length | 5.0mm |
| Standards Met | DIN 327 | DIN 1835B |
| Coolant Delivery | External |
