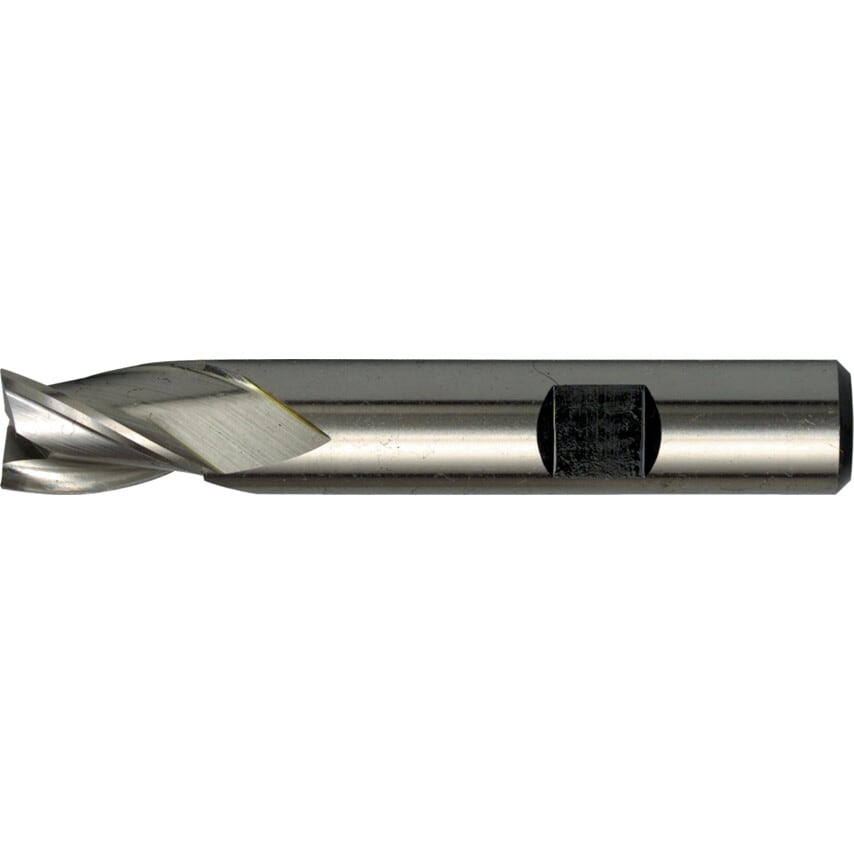

Series 05 - Short Series
Dimensions to DIN 327. Centre cutting. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Cutter Diameter Tolerance | e8 |
| Finish/Coating | Uncoated |
| Cutting Direction | Right Hand |
| Overall Length | 52.0mm |
| Product Type | Slot Drills |
| Material Grade | M42 |
| Coolant Delivery | External |
| Cutter Style | Square End |
| Series | 5 |
| Cutter Diameter | 6mm |
| Flute Length | 8mm |
| End Mill Type | Slot Drill |
| Standards Met | DIN 327 | DIN 1835B |
| Shank Diameter Tolerance | H6 |
| Flute Type | Helical |
| Milling Cutter Type | Slot Drill |
| Shank Type | Weldon Flat |
| Length Type | Short |
| Plunge Type | Centre Cutting |
| Number of Flutes | 3 |
| Material | Cobalt High Speed Steel |
| System of Measurement | Metric |
| Shank Diameter | 6mm |
