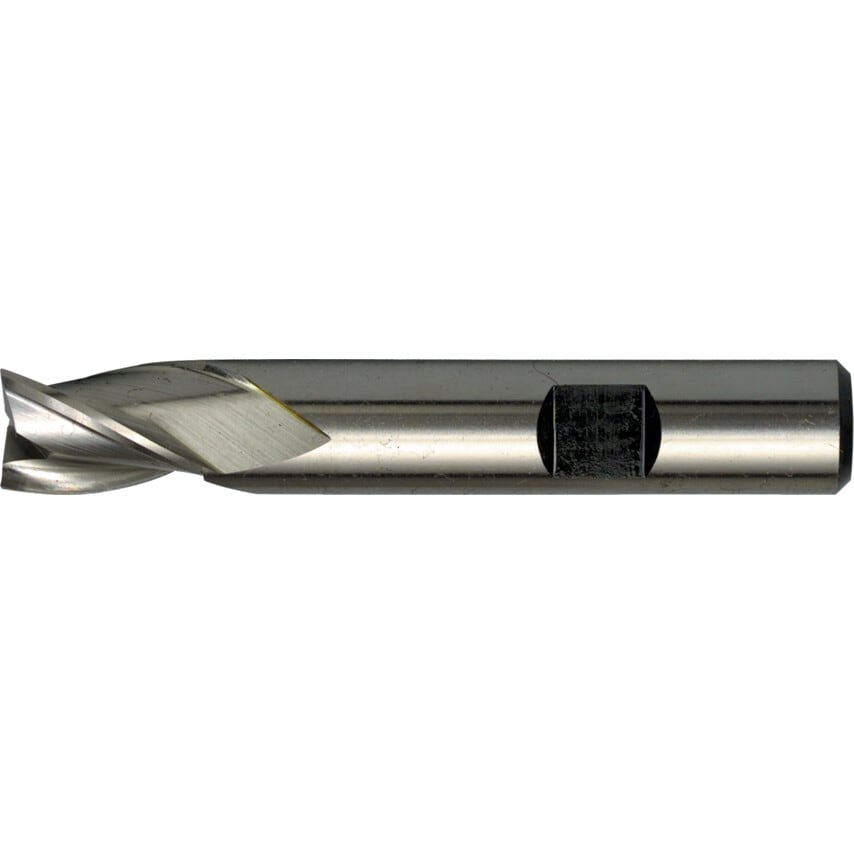

Series 05 - Short Series
Dimensions to DIN 327. Centre cutting. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| System of Measurement | Metric |
| Shank Diameter Tolerance | H6 |
| Plunge Type | Centre Cutting |
| Product Type | Slot Drills |
| Cutter Diameter | 4mm |
| Overall Length | 51.0mm |
| Number of Flutes | 3 |
| Shank Diameter | 6mm |
| Flute Length | 7mm |
| End Mill Type | Slot Drill |
| Finish/Coating | Uncoated |
| Cutter Diameter Tolerance | e8 |
| Flute Type | Helical |
| Coolant Delivery | External |
| Material | Cobalt High Speed Steel |
| Cutter Style | Square End |
| Series | 5 |
| Material Grade | M42 |
| Length Type | Short |
| Cutting Direction | Right Hand |
| Shank Type | Weldon Flat |
| Milling Cutter Type | Slot Drill |
| Standards Met | DIN 327 | DIN 1835B |
