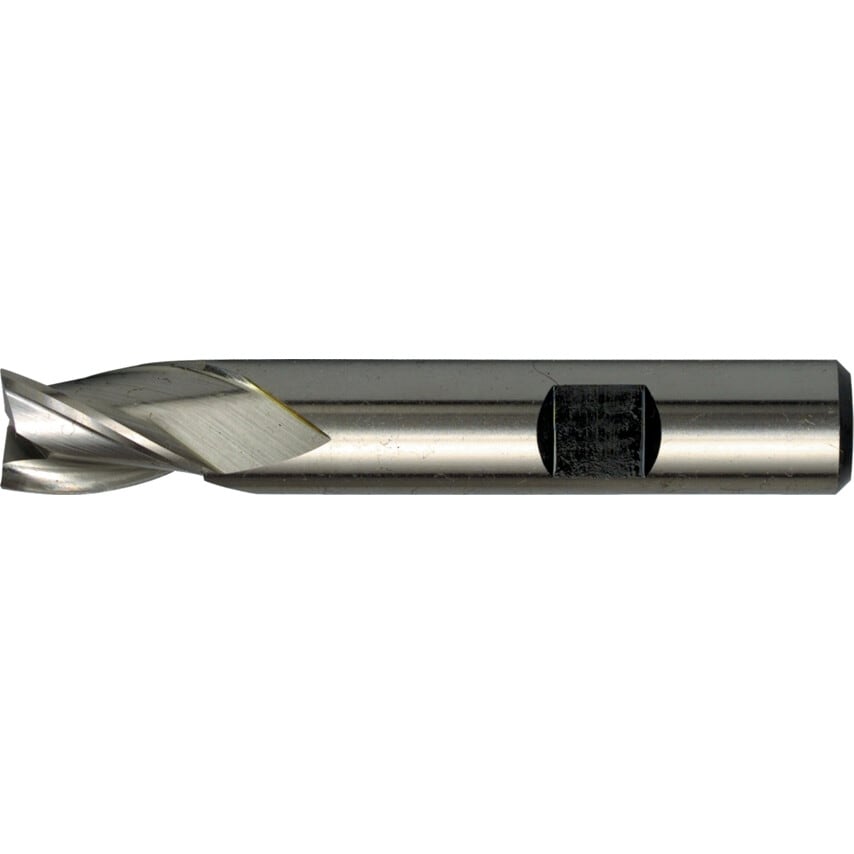

Series 05 - Short Series
Dimensions to DIN 327. Centre cutting. Cutting diameter to e8. Shank diameter to h6.
Uncoated (for general production machining)
TiCN Coated (extends cutter life and improves work material surface finish)
TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
| Series | 5 |
| Standards Met | DIN 327 | DIN 1835B |
| End Mill Type | Slot Drill |
| Cutter Diameter | 8mm |
| Material | Cobalt High Speed Steel |
| System of Measurement | Metric |
| Finish/Coating | Uncoated |
| Flute Length | 11mm |
| Coolant Delivery | External |
| Cutting Direction | Right Hand |
| Cutter Diameter Tolerance | e8 |
| Overall Length | 61.0mm |
| Shank Type | Weldon Flat |
| Number of Flutes | 3 |
| Material Grade | M42 |
| Product Type | Slot Drills |
| Cutter Style | Square End |
| Shank Diameter Tolerance | H6 |
| Flute Type | Helical |
| Shank Diameter | 10mm |
| Plunge Type | Centre Cutting |
| Milling Cutter Type | Slot Drill |
| Length Type | Short |
